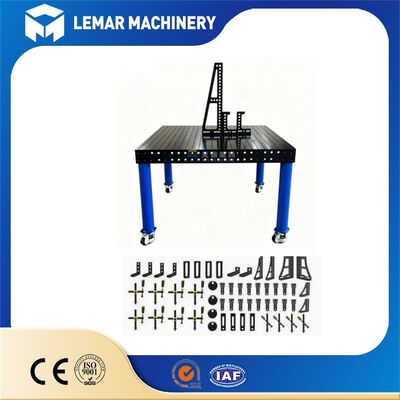

Heat Resistant Solid D16 Metal Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Heat resistant D16 welding table
,Solid metal 3D welding table
,D16 metal welding workbench
The Heat Resistant Solid D16 Metal Welding Table is a professional industrial 3D modular welding table engineered for high-temperature, high-intensity, and high-precision welding operations. Breaking through the defects of traditional thin hollow welding tables such as easy warping, slag adhesion, and rapid precision failure, this table adopts all-solid thick steel structure and full deep plasma nitriding heat-resistant technology. With standard D16 50×50mm global modular hole grid and five-sided three-dimensional positioning design, it delivers outstanding thermal stability, ultra-high load-bearing capacity, and long-lasting positioning accuracy. Suitable for MIG, TIG, ARC manual welding and 24-hour robotic automatic welding, it effectively reduces workpiece rework, unifies batch welding standards, and is the ideal durable precision base for modern manufacturing workshops.
Standard Features: Solid thick steel plate, full nitrided heat-resistant surface, D16 (Φ16mm) hole, 50×50mm grid, 5-sided drilling
| No. | Table Size (L×W) | Solid Plate Thickness | Approx Net Weight | Uniform Load Capacity |
|---|---|---|---|---|
| 1 | 1000 × 800 mm | 12mm | 125 KG | 2000 KG/㎡ |
| 2 | 1200 × 800 mm | 12mm | 148 KG | 2000 KG/㎡ |
| 3 | 1200 × 1000 mm | 12mm | 185 KG | 2000 KG/㎡ |
| 4 | 1500 × 1000 mm | 12mm | 230 KG | 2000 KG/㎡ |
| 5 | 1500 × 1200 mm | 12mm | 275 KG | 2000 KG/㎡ |
| 6 | 2000 × 1000 mm | 12mm | 320 KG | 2000 KG/㎡ |
| 7 | 2000 × 1200 mm | 12mm | 385 KG | 2000 KG/㎡ |
| 8 | 2400 × 1200 mm | 12mm | 460 KG | 2000 KG/㎡ |
| 9 | 2500 × 1500 mm | 12mm | 580 KG | 1800 KG/㎡ |
| 10 | 3000 × 1500 mm | 12mm | 695 KG | 1800 KG/㎡ |
| 11 | 3000 × 2000 mm | 12mm | 920 KG | 1800 KG/㎡ |
| 12 | 4000 × 2000 mm | 12mm | 1250 KG | 1500 KG/㎡ |
- Continuous temperature tolerance: Long-term stability under localized welding temperatures of 380°C.
- Resistance to momentary spatter: No melting or pitting upon brief contact with 1100°C molten slag.
- Low linear thermal expansion (solid thick plate): Deformation is ≤0.06mm per meter of tabletop length for a 50°C temperature difference; in contrast, hollow thin-plate tables can deform by over 0.3mm under the same conditions, directly compromising positioning accuracy.
- Nitrided protective layer temperature limit: The nitrided layer remains stable up to 480°C; oxidation and degradation occur only above this threshold, making it fully suitable for standard arc welding, gas-shielded welding (MIG/MAG), and argon arc welding (TIG).
- Resistance to thermal adhesion: The dense nitrided layer prevents molten metal penetration; once cooled, weld spatter detaches with a light tap, preventing permanent adhesion that would otherwise cause surface pitting or irregularities.
The modular welding table features a design utilizing thick steel plate and integrated reinforcing ribs; this effectively prevents deformation and sagging caused by heat, ensuring sustained high precision even under the high temperatures of continuous welding.
Overall deep nitriding delivers high temperature resistance, anti-slag adhesion and anti-oxidation. No burning pits or surface damage after long welding hours.
Standard 16mm holes with 50×50mm grid, fully compatible with global D16 jigs and clamps. Enables fast fixture switching and flexible workpiece positioning.
Perforated on top and four sides, supporting multi-angle clamping for complex, irregular and frame-structured workpieces.
High rigidity integral structure ensures even force bearing, supporting heavy workloads and 24-hour automated robotic welding production.
Hardened wear-resistant surface requires minimal maintenance. Stable precision and heat resistance greatly reduce workshop replacement and repair costs.
- CE Machinery Safety Certification (EN 10190 Standard)
- ISO 9001 Production System Certification
- SGS reports covering material composition, nitriding hardness, and flatness precision
- Original material certificates and factory inspection data sheets available for overseas customs clearance
- Table surface wrapped in anti-rust stretch film; holes filled with anti-rust paper and sealed to prevent moisture
- Small tables (≤1000×1000 mm): Sealed plywood crates (fumigated/heat-treated) compliant with maritime export standards
- Large tables (1200×2400 mm and above): Solid wood pallets secured with steel strapping and wrapped in rainproof plastic film; suitable for containerized shipping
- Accessories individually packed in waterproof cartons, clearly labeled with "D16" model designation to prevent mixing
- Standard stock sizes: 7-10 day delivery
- Custom dimensions (non-standard length/width), thickened tabletops, and special nitriding depths: 15-25 days
- Export ports: Supports FOB (Shanghai, Ningbo, Wuxi, Tianjin, etc.); supports CIF and DDP (including customs clearance and duties)
