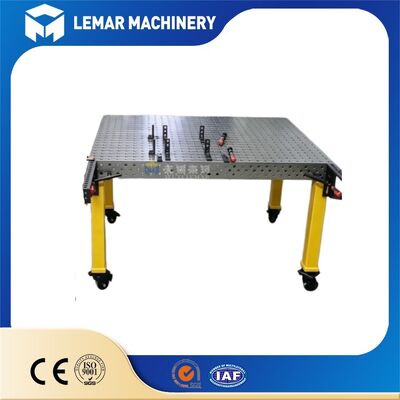

Compact Splicing D16 Welding Table Continuous Flat Surface

Compact Splicing D16 Welding Table Continuous Flat Surface

MOQ: 1 PCS
Price: 500-1500 USD
Standard Packaging: 4000*2000*200mm
Delivery Period: 15-25 work days
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: 500 units/month
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
CE certificate.pdf
Single Panel Flatness:
≤0.05mm/㎡
Joint Height Difference After Splicing:
≤0.02mm
Joint Gap:
＜0.03mm
Tabletop Material:
HT300 Grey Cast Iron/Q355 High Strength Alloy Steel
Grid Spacing:
50mm × 50mm Full Grid Layout
Surface Finish Variant:
Blackening / Nitriding Hardening
Support Leg Variant:
Fixed Leg / Mobile Caster Leg / Hydraulic Lifting Leg
Shipping Method:
Sea Freight / Air Freight / Rail Freight
Trade Terms:
CIF ,FOB ,CFR ,DDP ,DDA ,EXW
Highlight:

Compact D16 welding table

,

Continuous flat welding surface

,

3D welding table with warranty

Product Description
Compact Splicing D16 Welding Table Continuous Flat Surface
Compact Splicing D16 Welding Table overview

The Compact Splicing D16 Welding Table Continuous Flat Surface is a professional modular 3D welding workbench tailored for small-to-medium metal fabrication, custom frame welding, cabinet assembly, and low-volume high-precision production.

Different from ordinary splicing tables with obvious seams and step gaps, this model adopts full-side CNC precision milling + double positioning pin locking technology. After assembly, multiple separate panels form an integral continuous flat working surface. Long profiles, tubular frames, and large workpieces can slide and position smoothly without datum offset.

Thanks to its compact split structure, the table solves the pain points of oversized integrated tables: high shipping cost, impossible door/elevator access, and inflexible workshop layout. Users can start with 1-2 panels and expand the working area at any time without replacing existing brackets and fixtures.

D16 Welding Table assembly demonstration D16 Welding Table precision details
Exclusive Continuous Flat Surface Technology

Most splicing welding tables on the market leave obvious steps and gaps after connection, causing inaccurate positioning, unsmooth workpiece movement, and unstable welding tolerance.

This D16 splicing table adopts industrial-grade seamless splicing process:

  • Four sides of each table panel are fully CNC milled with parallelism controlled within 0.01mm
  • Precision D16 locating pins eliminate horizontal displacement between panels
  • Bottom high-strength tension bolts lock the whole structure tightly
  • Final splicing flatness error ≤0.02mm, achieving one-piece continuous flat effect
D16 Standard Hole System
Hole Diameter Φ16mm (H7 precision reamed hole)
Grid Spacing 50×50mm full coverage grid
Single panel flatness ≤0.05mm/㎡
Overall splicing flatness ≤0.1mm/3m
Positioning repeat accuracy  ±0.03mm
Compatibility Full compatibility with all D16 standard clamps, pins, brackets, and supports
After-sales and Foreign Trade Support Services

Warranty: 2-year warranty on the main tabletop; 1-year warranty on wear parts (stands, casters, and clamps); free replacement parts provided for non-man-made quality issues.

Included Documentation: English installation manual, comprehensive diagram of the clamp assembly, laser flatness inspection report, and CE certification documents.

Customization Services: Options available for custom tabletop dimensions, stand heights, surface finishes, and complete clamp package configurations.

Export-Standard Packaging: Tabletop wrapped in multiple layers of bubble wrap and enclosed in a solid-wood, fumigation-free export crate; stands packed separately in cartons; designed to prevent moisture damage and impact during sea transport.

Customer Reviews
Customer review from Australian client Customer review from Spanish client
Welding Table to AU Welding Table to Spain
FAQ
Q: Can you mix different welding table sizes, bases and fixture sets in one container for distributors?
A: Yes, we support mixed loading for wholesale distributors, flexible allocation of different specifications to meet your local market inventory demand.
Q: Can I add extra table panels to expand working area later? Will old brackets & fixtures match new panels?
A: 100% compatible. You can purchase single extra panels anytime to splice larger workbench. Original support legs, all D16 clamps, locking pins fit new panels perfectly, no need to replace whole sets, save your secondary investment.
Q: How many panels can be spliced together at maximum? Any flatness loss if splice over 3 pieces?
A: Unlimited splicing quantity. All panels adopt unified CNC processing tolerance, multi-panel splicing still maintains stable flatness. We have clients splice 4~6 panels for large frame welding without precision attenuation.
Q: Do you provide CE certificate for EU market import clearance?
A: Yes, our whole welding table complies with EU EN 1090 & ISO 15792 standards, complete CE certification documents, material test reports, flatness inspection reports can be supplied for customs clearance and factory ISO audit. We also offer CO, Form A certificate of origin upon request.
Q: Do you offer spare parts supply after sales? How fast for delivery?
A: All accessories including casters, leveling feet, quick clamps, locating pins keep permanent stock. Spare parts can be shipped within 7 working days upon your request, global fast delivery support.

For more specifications, bulk pricing and customized plans of the Compact Splicing D16 Welding Table Continuous Flat Surface, please submit your inquiry below, our sales manager will contact you shortly with full details.
