3D 28mm Hole Diameter Flexible Modular Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 40000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,T/T,D/P,Western Union |
| Supply Capacity: | 500 units/month |
28mm hole diameter welding table
,flexible modular welding table
,3D welding table with warranty

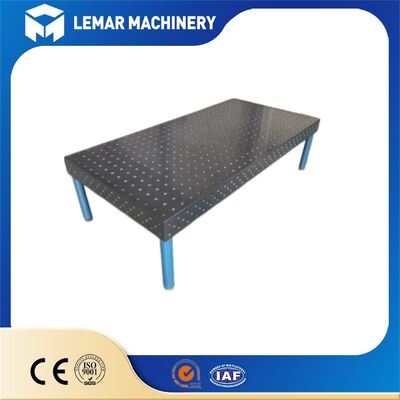

Our 3D 28mm Hole Diameter Flexible Modular Welding Table is a professional heavy-duty fixturing platform designed for modern precision welding and metal fabrication. Unlike ordinary 2D flat welding benches, this 3D table provides five working surfaces to achieve full-dimensional positioning, clamping, assembly, and inspection.
Adopting the international standard Ø28mm hole / 100×100mm grid, all modular accessories are fully universal and interchangeable. It allows fabricators to set up custom fixtures in 10-30 minutes for different workpieces, eliminating expensive custom-made jigs and improving production flexibility dramatically.
All sizes adopt standard D28 system: Ø28mm holes, 100×100mm grid, 200mm high side panels, 25mm table thickness.
Two material options: HT300 Cast Iron / Q355 Steel Plate.
| Table Dimension (L×W mm) | Total Working Area | Recommended Support Leg Qty |
|---|---|---|
| 1000 × 1000 | 1㎡ | 4 pcs |
| 1200 × 1500 | 1.8㎡ | 4-6 pcs |
| 1500 × 1500 | 2.25㎡ | 6 pcs |
| 1500 × 2000 | 3㎡ | 6 pcs |
| 2000 × 1000 | 2㎡ | 6 pcs |
| 2000 × 1500 | 3㎡ | 6-8 pcs |
| 2000 × 2000 | 4㎡ | 8 pcs |
| 2000 × 2500 | 5㎡ | 8 pcs |
| 2000 × 3000 | 6㎡ | 8 pcs |
| 2000 × 4000 | 8㎡ | 10 pcs |
5-Sided 3D Positioning with Full Hole Coverage
The top surface and all four side panels (front, back, left, and right) feature a full grid of standard 28mm holes. This enables not only flat-surface clamping but also vertical support, lateral clamping, and elevated positioning. Complex structures—such as tubular frames, vehicle chassis, and enclosures—can be clamped securely in a single setup without the need for makeshift shims or spacers.
Fully Modular, Universal Tooling System
- All accessories are designed for the standard 28mm hole pattern and are fully interchangeable with fixtures from other manufacturers using the global D28 system. Core components include:
- Positioning: Locating pins, V-blocks, L-shaped square blocks, U-shaped supports, and angle squares
- Clamping: Quick-locking pins, screw clamps, vertical/horizontal toggle clamps, and telescopic support posts
- Expansion: Extension plates, riser blocks, and connecting locks (for joining multiple platforms)
- A single workbench can handle the welding of dozens or even hundreds of different workpiece types, replacing the traditional "one-off, dedicated jig" approach
Exceptional Flexibility and Rapid Changeover
Designing and manufacturing traditional dedicated tooling takes days; in contrast, reconfiguring the D28 platform for a new workpiece takes only 10-30 minutes. Assembly and disassembly require no consumables, and fixtures can be reused for over a decade, drastically cutting tooling manufacturing costs and reducing the warehouse space needed for jig storage.
- Fixed Heavy-Duty Legs - For stable batch production, with fine-tuning levelers
- Height Adjustable Legs - Adapt for assembly, welding and robot operation heights
- Mobile Brake Legs - Flexible workshop transfer with anti-slip floating support during welding
D28 28mm system is designed for heavy-duty workpieces with larger clamping force, higher load capacity and larger spanning fixture layout. D16 is more suitable for light sheet metal and small precision parts.
Yes. Our welding tables follow international D28 standard, compatible with all mainstream 28mm modular fixture systems globally.
Nitrided cast iron version: 8-12 years precision stability. Nitrided steel version: 5-7 years. Far longer than ordinary painted welding tables.
Yes. Splicing locks ensure seamless connection and consistent overall precision for large workpieces.
The professional nitrided layer is high-temperature resistant and anti-abrasive, effectively avoiding pit damage caused by welding splash.
Please note when sending inquiry:
I need a platform size: ______ mm × ______ mm,
mainly used for welding ________ (workpiece type).
Enhance your welding efficiency by using our 3D 28mm Hole Diameter Flexible Modular Welding Table!
Contact Amy directly for more details.
