CE Certified D28 3D Welding Table for Automotive Metal Assembly
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
CE certified D28 welding table
,3D welding table for automotive
,metal assembly welding fixture table

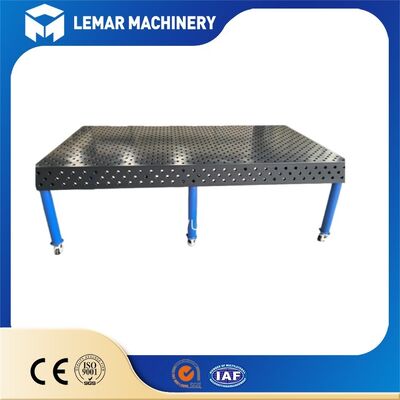

The CE Certified D28 3D Welding Table is a heavy-duty 5-sided modular welding workstation specifically designed for automotive metal component welding and assembly. Featuring a standard D28 Φ28mm hole grid and nitride hardened surface, it provides ultra-precise positioning, strong load capacity, and full fixture compatibility. This table is perfectly suited for both manual welding and robotic production lines handling car chassis, battery trays, crash beams, and body sheet metal.
| Table Size (L×W mm) | Table Height | Tabletop Thickness | Single Table Weight (Steel Version) | Max Static Load |
|---|---|---|---|---|
| 1000 × 800 | 200mm | 22mm | 380kg | 2 Ton |
| 1500 × 1000 | 200mm | 22mm | 620kg | 2.5 Ton |
| 2000 × 1000 | 200mm | 25mm | 950kg | 3 Ton |
| 2400 × 1200 | 200mm | 25mm | 1350kg | 4 Ton |
| 3000 × 1500 | 200mm | 25mm | 1900kg | 5 Ton |
Advantages of 3D Structural Welding Tables over Traditional 2D Tables
- Three-dimensional clamping capability: The five-sided hole pattern allows for simultaneous clamping of base, side, and angled sheet metal components. Parts such as curved automotive doors, crash beams, and battery pack trays can be positioned and formed in a single setup, eliminating the need to repeatedly flip the workpiece or reconfigure tooling.
- Flexible versatility: A single platform accommodates multiple vehicle models; switching between workpieces requires only the adjustment of fixtures rather than the cutting or welding of custom tooling, significantly reducing fixture development costs for OEMs.
- Controllable dimensional accuracy: A unified grid reference system ensures stable welding tolerances across the entire vehicle, perfectly meeting the automotive industry's rigorous dimensional inspection standards.
- High reusability: Fixtures are fully standardized, allowing components to be directly reused for new projects and shortening production line modification cycles by 70%.
- Standard Fixed Stand: Features a thickened, welded square-tube frame with pre-drilled holes for floor-anchoring via expansion bolts, ensuring stable load-bearing—ideal for fixed-station robotic production lines. Equipped with four M24 adjustable leveling feet (±50mm range) to accommodate uneven flooring.
- Mobile Stand (with Braking Casters): Equipped with four heavy-duty polyurethane swivel casters and two fixed casters; each wheel supports a 2-ton load. Features dual-locking brakes to ensure complete immobilization after positioning; ideal for multi-station workflows and temporary pilot production workshops.
- Hydraulic Lifting Stand: Electric-hydraulic lifting mechanism with a 0-300mm stroke and automatic power-loss locking; accommodates robots and welders of varying heights. Specifically designed for welding low-profile workpieces, such as new energy vehicle battery trays.
- Rotary Positioning Base (Optional): 360° electric rotation with a 3-ton load capacity; allows for full-circumference welding by a single operator without the need to manually flip the workpiece frame.
- Do not cut workpieces directly on the welding table surface using gas or plasma cutting; high temperatures will damage the nitrided layer and compromise surface flatness.
- Do not stack heavy workpieces beyond the rated load capacity to avoid permanent deformation of the table surface.
- Do not strike or subject the reference holes to heavy impact, as this will compromise positioning tolerances.
- Do not soak the table surface for extended periods in strong acid or alkaline cleaners, as this will corrode the nitrided surface layer.
If you are looking for reliable, high-precision welding equipment for auto mass production, our CE Certified D28 3D Welding Table for Automotive Metal Assembly will be your ideal choice.
Feel free to send us your workpiece drawings, workshop layout or customization demands. Our engineering team will provide a tailored solution and detailed quotation for you within 24 hours. Contact us via WhatsApp or email to get started!
