D16 System 3D Flexible Welding Table High Precision Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,T/T,Western Union,D/P |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE Certified
Model Number
D16
Document
Flatness Grade:
High Precision Grade 0
Load Capacity:
2–5 Ton Static Load
Working Surface:
5-sided Full Perforated (top + 4 Vertical Walls)
Tensile Strength:
≥300 MPa
Working Ambient Temperature:
-10℃ ~ +60℃
Service Life:
8-10 Years
Allowable Long-term Single Point Load:
≤300 Kg
Safety Factor Of Overall Structure:
≥2.5
Trade Terms:
CIF/FOB/EXW/DDP
Highlight:
D16 System 3D welding table
,flexible welding table high precision
,3D welding table with warranty
Product Description

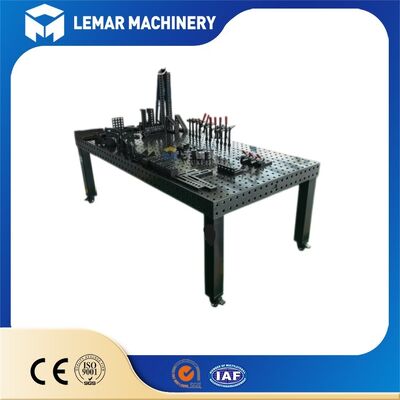

D16 System 3D Flexible Welding Table High Precision Welding Table
The D16 System 3D Flexible Welding Table High Precision Welding Table is designed for precision sheet metal, aluminum frame fabrication, medical equipment, automation tooling, and robot welding stations. Adopting the international standard D16 hole system (Φ16mm holes with 50×50mm precision grid), this 5-sided 3D worktable allows multi-angle flexible clamping, rapid tooling rearrangement, and zero-custom fixture production. Different from heavy-duty D28 welding tables, the D16 series focuses on high precision, repeatability, and flexible small to medium workpiece production, delivering stable micrometer-level accuracy for batch welding and robotic welding applications.
Technical Specifications
| Item | Parameter |
|---|---|
| Hole System | D16 (Φ16mm) |
| Grid Spacing | 50×50mm |
| Hole Position Tolerance | ±0.03~±0.05mm |
| Table Flatness | ≤0.05mm / 1000mm |
| Verticality of Side Wall | ≤0.05mm / 200mm |
| Surface Hardness | HV600+ (Nitrided) |
| Hardened Layer Depth | 0.25-0.4mm |
| Main Material | HT300 Grey Cast Iron / Q355 Steel |
| Standard Load Capacity | 2-5 Tons |
| Working Surface | 5-sided full perforation |
| Available Sizes | 800×600 / 1000×800 / 1200×1000 / 1500×1000 / 2000×1000mm (Customizable) |
Production Craftsmanship Advantages
Our D16 welding tables adopt strict industrial-grade production processes to ensure long-term precision stability:
- Integrated Resin Sand Casting - Thickened reinforced rib structure, high overall rigidity, strong vibration absorption during welding
- Dual Stress Relief Treatment - High-temperature annealing + natural vibration aging, completely eliminates internal casting stress, no deformation for years
- 5-axis CNC Precision Machining - Full five-sided milling and drilling, uniform benchmark, consistent hole spacing across the entire table
- Deep Gas Nitriding Process - High-temperature penetration hardening, effectively anti-spatter, anti-stick slag, anti-corrosion, and anti-wear
- Laser Etched Scale Grid - Permanent clear scale lines for fast visual positioning, no fading
- 100% Full Inspection Before Shipment - Flatness, verticality, hole tolerance, hardness, and load capacity tested strictly with official inspection reports
Installation & Maintenance
Simple Installation: Equipped with standard support legs and horizontal adjustment feet, easy level calibration. Optional mobile or lifting base for flexible workshop layout.
Long Service Life: With daily cleaning and regular maintenance, the service life can reach more than 10 years. Nitrided surface avoids slag adhesion and hole wear, greatly reducing maintenance difficulty.
Professional Selection Guide
Clear selection criteria to help customers quickly confirm whether D16 weldin table is suitable for their workshop:
- Choose D16 If You Need High Precision & Small-Medium Workpieces - Ideal for precision sheet metal, aluminum profiles, medical equipment, 3C parts, and small frame structures
- Choose D16 For Robot Welding - Stable flatness within 0.05mm/1000mm perfectly matches automatic robot welding standards
- Choose D16 For Frequent Product Switching - Suitable for factories with multi-variety, small-batch production and new product prototyping
- Choose D28 Instead If - You process large steel structures, heavy machinery parts, and super-heavy load workpieces
- Choose Cast Iron Version If - You pursue long-term stability, shock absorption, and high-precision batch production
- Choose Steel Structure Version If - For temporary prototyping, light-duty workshop use, and cost-effective short-term production
Want to know more details or get the best factory price for our D16 System 3D Flexible Welding Table?
Share your workshop requirements with us via the inquiry form below. We offer custom dimensions, full accessory packages and reliable after-sales support. Send an inquiry today to unlock your tailored offer.
