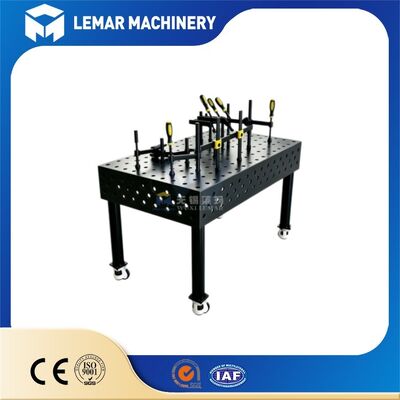

China Factory Supply D28 3D Welding Table with CE Certification Standard
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Standard System:
D28, Hole Diameter Φ28.15mm ±0.03mm
Grid Spacing:
100mm × 100mm
Flatness:
0.05–0.1mm Per 1000mm Length
Verticality Of Side Panels:
≤0.1mm/200mm
Surface Hardness:
HV450–700 After Integral Nitriding
Uniform Load Capacity:
2000–3000 KG/㎡
Processing Technology:
Integral Stress Relief Annealing + CNC Five-sided Milling
Structure:
5-sided Full Hole Design (top + Four Vertical Sides), Thick Reinforced Ribs Inside
Matching Accessories:
Full Set D28 Standard Clamps, Locking Pins, Support Blocks, Foot Levelers
Highlight:
D28 3D welding table with CE certification
,China factory supply welding table
,Standard 3D welding table
Product Description
China Factory Supply D28 3D Welding Table with CE Certification Standard
China factory direct supply D28 3D welding table with full CE certification — a heavy-duty, modular, and fully flexible welding fixturing system designed for professional metal fabrication, structural welding, automotive frame welding, robot welding stations, and custom steel works.
Unlike traditional 2D flat welding benches, our 3D welding table features full-hole positioning on the top surface and four vertical sides, allowing clamping, positioning, and assembly in X, Y, and Z directions. It completely replaces custom-made jigs, reduces setup time, eliminates welding deformation, and ensures precise repeatability for every workpiece.
All tables are EU CE certified (2006/42/EC Machinery Directive), fully compliant for sale and delivery across Europe, UK, Australia, and global industrial markets.
Material Options & Surface Craftsmanship
Two Optional Materials:
- Q355 High-Strength Steel Version
- High toughness and anti-deformation performance
- Heavy-duty internal reinforced rib structure
- Stress-relief annealing treatment to prevent long-term warping
- Cost-effective for most factory production scenarios
- HT300 Gray Cast Iron Version
- Superior shock absorption and thermal stability
- Extremely low deformation under welding high temperature
- Best for robot welding, high-precision batch production
Surface Craftsmanship: Welding tables undergo integral nitriding hardening process. The hardened layer prevents welding spatter adhesion, resists daily abrasion, and maintains original precision for many years. The surface is easy to clean and requires no frequent maintenance.
D28 3D Welding Table Standard Size Chart
| Table Size (L×W mm) | Grid Standard | Side Verticality | Flatness Tolerance |
|---|---|---|---|
| 1000 × 1000 | D28 / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1200× 1000 | D28 / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1500 × 1000 | D28 / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 2000 × 1000 | D28 / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1200 × 2000 | D28 / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1200 ×2400 | D28 / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1500 × 3000 | D28 / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 2000 × 4000 | D28 / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
CE Certification Standards
Certification Attributes: Mandatory certification under the EU Machinery Directive (2006/42/EC); an essential market access requirement for exports to the 27 EU member states, Norway, Iceland, and Liechtenstein (CE marking is mandatory for customs clearance and sales).
Testing Scope:
- Mechanical Safety: Platform load-bearing capacity, structural integrity, anti-tip stability, and edge/corner smoothing to prevent scratches
- Operational Safety: Clamp locking force, anti-pinch design, and safe load thresholds
- Material Compliance: Free from hazardous heavy metals; compliant with EU environmental restrictions
- Export Documentation: CE Certificate, Declaration of Conformity (DoC), English technical manual, and product nameplate featuring the CE mark—meeting requirements for overseas customs and customer audits
Core Product Advantages
- Factory Direct: Large-scale domestic production eliminates middlemen, offering prices significantly lower than European or American import brands
- Flexible Versatile: A single welding table paired with standard fixtures accommodates dozens or even hundreds of workpiece types; eliminates the cost of custom tooling and reduces changeover and setup time by 70%
- Stable Precision: Stress-relieved structure and CNC precision machining ensure high dimensional consistency in batch welding, drastically reducing the need for post-weld correction and rework
- Heavy-Duty Durability: The D28 large-bore system offers superior clamping force and double the load-bearing capacity of D16 small-bore platforms, making it ideal for welding thick plates, heavy-duty frames, and construction machinery
- Export Compliant: CE-certified; supports FOB, CIF, and DDP delivery terms; utilizes standard export packaging (wooden crates/pallets); and provides English-language drawings and customs documentation
- After-Sales Support: Includes a one-year warranty and lifetime technical support; on-site commissioning by overseas engineers and custom tooling design solutions are available
Standard Export Packaging
- Main Table: Thickened, multi-layer solid wood (fumigation-free) crate with reinforced base runners; fully lined with foam to protect machined surfaces; dust plugs pre-installed in mounting holes
- Fixtures & Accessories: Individually packed in waterproof PE bags and a separate small wooden box to prevent damage or scratches during transport
- Extra-Large Modular Platform: Sectional crating; assembly alignment pins and connecting bolts are individually packaged
Interested in Our D28 3D Welding Table with CE Certification Standard?
We offer factory-direct prices, reliable CE certificates and full after-sales support for all welding tables. Drop your inquiry to us today for free quotation and technical parameter sheet!
