D28 3D Custom Modular Steel Welding Fixture Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,Western Union,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Standard:
D28 (Φ28mm Locating Hole)
Grid Spacing:
100×100 Mm
Hole Tolerance:
±0.02 Mm
Table Thickness:
25 Mm
Overall Flatness:
≤0.3 Mm / 1000mm
Max Load Capacity:
2 Tons / ㎡
Surface Hardness:
HV550 - HV680
Custom Size:
Supported
Anti-weld Spatter:
Yes
Highlight:
3D modular welding fixture table
,custom steel welding table
,D28 welding fixture table
Product Description

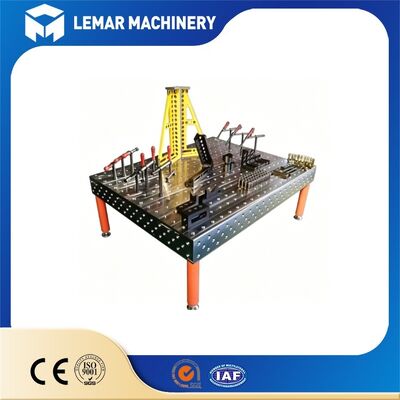

D28 3D Custom Modular Steel Welding Fixture Table
The D28 3D Custom Modular Steel Welding Fixture Table is a heavy-duty, high-precision modular welding system built around Φ 28mm locating holes and a 100 × 100mm standard grid. Engineered for industrial metal fabrication, it delivers exceptional rigidity, accuracy, and flexibility for 3D positioning, clamping, welding, and assembly of complex workpieces. Ideal for heavy steel structures, construction machinery, automotive frames, and more.
Core Specifications
| Table Material | High-strength Q355 steel (or HT 300 Cast iron), 25mm thick |
| Locating Hole | Φ28mm, tolerance ±0.02mm; standard 100×100mm grid |
| Flatness | ≤0.3mm per 1000mm |
| Surface Hardness | Nitrided, HV550-HV680 |
| Load Capacity | Up to 2 tons/m² |
| Standard Dimensions | 1500×1000mm, 2000×1200mm, 2400×1200mm (custom sizes available) |
| Surface Finish | Black nitride coating (anti-spatter, corrosion-resistant, easy to clean) |
| Support Legs | Adjustable leveling feet / locking casters (optional) |
Applications
- Heavy Steel Structures: Building beams, bridge components, mining equipment frames
- Automotive / Rail: Chassis, frames, and assembly fixtures
- Construction Machinery: Excavators, loaders, crane structural parts
- Energy / Agriculture: Large frames, tanks, wind turbine components
- Precision Assembly: Welding inspection, calibration, and assembly stations
Standard Package Includes
1× D28 3D welding table (selected size)
4× heavy-duty adjustable support legs
Full set of standard D28 modular fixtures (clamps, locators, support pins)
Assembly hardware & operation manual
1× D28 3D welding table (selected size)
4× heavy-duty adjustable support legs
Full set of standard D28 modular fixtures (clamps, locators, support pins)
Assembly hardware & operation manual
Why Choose Our D28 Welding Table?
- Factory-direct pricing: Competitive rates without middlemen
- Quality assurance: ISO 9001 certified, 1-year warranty
- Global shipping: Worldwide delivery with secure packaging
- Expert support: Professional guidance for setup and fixture selection
Upgrade your welding workflow today with the D28 3D Modular Welding Table—where precision meets power.
