The D28 3D Jig Fixturing Clamping Welding Table

The D28 3D Jig Fixturing Clamping Welding Table

MOQ: 1 PCS
Price: 500-1500 USD
Standard Packaging: 4000*2000*200mm
Delivery Period: 15-25 work days
Payment Method: L/C,D/A,Western Union,T/T,D/P
Supply Capacity: 500 units/month
Detail Information
Place of Origin
Wuxi, China
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
CE certificate.pdf
Base Structure:
Box‑type With Internal Reinforcing Ribs
Height Adjustment Range Of Support Feet:
Standard 0–50 Mm (customizable)
Surface Hardness After Nitriding:
HV 550–HV 680
Stress Relief Process:
Annealing + Natural Aging
Working Temperature Range:
-20 ℃ ~ +60 ℃
Nitriding Layer Thickness:
0.15–0.30 Mm
Hole Center Distance Tolerance:
±0.05 Mm
Tabletop Thickness:
25 Mm
Brand:
Customizable (can Fill Your Brand Name)
Highlight:

D28 3D welding table

,

Jig fixturing clamping table

,

Welding table with fixturing

Product Description
D28 3D Jig Fixturing Clamping Welding Table

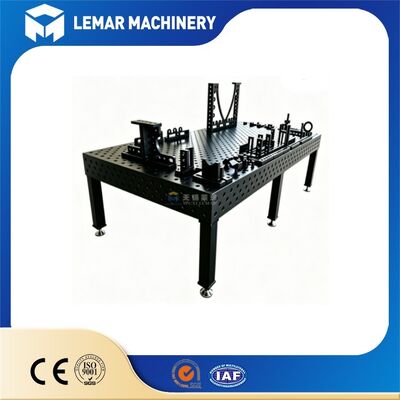

D28 3D Welding Table overview showing modular design and clamping system

The D28 3D Jig Fixturing Clamping Welding Table is a multifunctional modular welding work platform designed for modern metal fabrication. Featuring a standard 28mm hole system with a 100mm grid and 5-sided full-hole working structure, this 3D welding table supports unlimited combinations of jigs and clamps to complete precise positioning, fast fixturing, and stable clamping for all types of workpieces. Perfect for welding, assembling, inspecting and grinding heavy-duty metal parts.

Close-up view of D28 welding table hole pattern and clamping accessories   D28 welding table in use with various workpieces and fixtures
Precision Standards
Flatness
≤0.3 mm / 1000 mm; precision grade ≤0.1 mm / 1000 mm
Perpendicularity
≤0.1 mm / 200 mm
Surface Roughness
Ra 3.2
Tabletop Thickness
25-30 mm
Base Structure
Reinforced box-type base structure to improve overall rigidity under heavy load
Key Advantages
  • 5-Sided 3D Working Design: Realize omnidirectional 3D clamping, solving the clamping problem of frame parts, box parts and irregular workpieces that ordinary welding tables cannot handle.
  • Cost Saving: Eliminate repeated production of dedicated welding molds. Reduce your fixture manufacturing cost by over 60%.
  • Improved Working Efficiency: The modular assembly method shortens workpiece setup time from several hours to a few minutes.
  • Control Welding Deformation: Multi-point fixed clamping restricts workpiece displacement during welding, greatly reducing defective rates caused by thermal deformation.
  • Super Load Capacity: Integral box structure with thickened tabletop, suitable for heavy-duty workpieces from dozens of kilograms to several tons.
Packaging & Service
Export packaging of D28 welding table in wooden crate Steel frame packaging for D28 welding table protection

Packaging: Our standard welding tables are packed in export-compliant fumigated wooden crates or steel frames to prevent damage during long-distance transport.

After-Sales Service: We provide professional technical support for installation, leveling, and fixture adaptation, as well as a supply of spare parts for modular components.

Ready to replace costly custom jigs with a flexible, long-lasting modular solution?

The D28 3D Jig Fixturing Clamping Welding Table is your ideal choice for modern metalworking. Reach out to us today to get a personalized quote and expert advice for your workshop requirements.
