Custom Dimensioned D28 3D Flexible Welding Table With Uniform Grid Patterns
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
System Standard:
D28 (Φ28mm Locating Holes)
Grid Pattern:
Uniform Orthogonal Grid (standard 100×100 mm)
Material:
Q355 High‑Strength Structural Steel/HT300 High‑Grade Cast Iron
Perpendicularity Of Working Faces:
≤0.05 mm/200 mm
Center‑to‑Center Grid Accuracy:
≤±0.05 mm
Base:
Adjustable Support Feet Optional
Tabletop Flatness:
≤0.05–0.1 mm/m
Hole Position Tolerance:
≤±0.02 mm
Application Type:
Manual Welding, Robotic Welding Station, Assembly, Inspection, Small‑batch & Heavy‑duty Metal Fabrication
Highlight:
D28 3D flexible welding table
,custom dimensioned welding table
,uniform grid welding table
Product Description

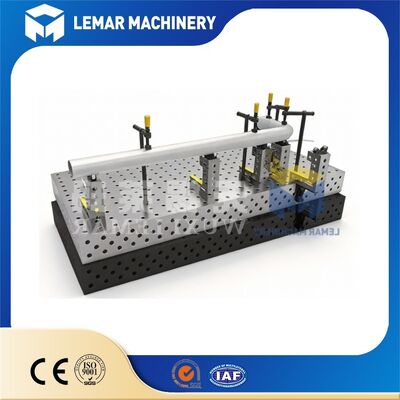

Custom Dimensioned D28 3D Flexible Welding Table With Uniform Grid Patterns
Custom Dimensioned D28 3D Flexible Welding Table With Uniform Grid Patterns is a heavy-duty modular work platform engineered for precision welding, assembly and inspection. Built with standardized D28 hole systems and evenly spaced grid layout, it supports custom sizing to match your workshop requirements, delivering reliable 3-axis fixturing flexibility for diverse metal fabrication projects.
Core Structure Specifications
| Bore diameter | Φ28mm, with precision tolerances typically controlled to ±0.02mm |
| Standard grid | 100×100mm uniform orthogonal grid (non-diagonal), with hole center-to-center spacing accuracy of ±0.05mm |
| Working surfaces | Standard D28 hole patterns are machined on five faces (top surface plus four sides), enabling 360° multi-directional tooling expansion |
| Tabletop flatness | ≤0.05-0.1mm/m |
| Working surface perpendicularity | ≤0.05mm/200mm |
| Hole positional accuracy | <0.02mm |
| Structural treatment | Undergoes overall stress-relief aging treatment, ensuring resistance to deformation during long-term use |
Core Features
Modular Flexible Fixturing System
Utilizes standard fixtures (such as locating pins, clamps, angle brackets, square boxes, and V-blocks) and D28 standard holes for rapid assembly; eliminates the need for custom welding jigs, allowing a single platform to accommodate a wide range of workpieces.
3D Spatial Positioning Capability
Unlike 2D welding tables, the five precision working surfaces enable workpiece clamping at any spatial angle or height, making it suitable for the welding and assembly of complex 3D steel structures, frameworks, and irregularly shaped components.
Advantages of the Uniform Grid
Features a precise 100×100mm orthogonal grid with standardized hole locations; enables quantifiable and repeatable fixture positioning, ensuring consistent clamping during mass production and significantly reducing dimensional errors in welding.
Custom Dimension Options
- Overall dimensions: Fully customizable length and width (standard range: 1000×1000mm to 4000×2000mm)
- Side height: Options of 100mm, 150mm, or 200mm
- Features: Reinforced load-bearing capacity, thickened tabletop, mobile casters, floor supports, custom hole patterns, auxiliary tabletops, etc.
- Surface treatment: Options include nitriding, blackening, anti-rust coating, etc.
Ready to upgrade your metal fabrication setup?
Invest in our Custom Dimensioned D28 3D Flexible Welding Table With Uniform Grid Patterns for reliable, repeatable welding results.
Get in touch for custom quotations, technical support and one-stop solutions for your workshop.
