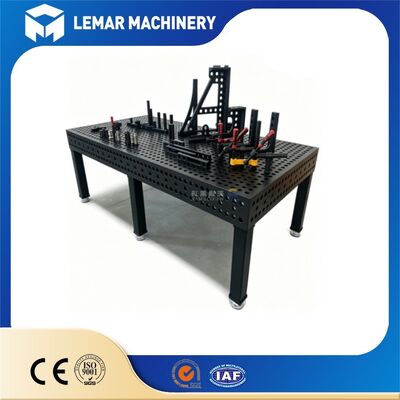

Professional Fabrication D28 3D Modular Welding Work Table System
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,Western Union,T/T |
| Supply Capacity: | 500 units/month |
modular welding work table
,D28 3D welding table
,professional fabrication welding system
Our Professional Fabrication D28 3D Modular Welding Work Table System features plasma nitriding surface treatment, high precision engineering, and a comprehensive set of modular fixtures. This professional heavy-duty flexible fixturing solution is engineered for modern metal fabrication workshops.
Built around the international standard Φ28mm hole grid system, this 3D welding table enables X-Y-Z directional positioning, clamping and assembly without custom-made dedicated jigs. Designed for high-load industrial use, the table features a rigid structure, precision-machined hole patterns and wear-resistant plasma nitriding treatment.
Paired with a full range of interchangeable modular accessories, it drastically cuts fixture costs, shortens setup time and ensures consistent welding accuracy for low-volume, multi-variant production as well as heavy structural manufacturing.
| Parameter | Specification |
|---|---|
| Locating Hole Diameter | Φ28mm (±0.02mm tolerance) |
| Main Grid Pattern | Standard 100×100mm orthogonal grid; high-end models offer 50×50mm dense grid option |
| Table Faces | Five faces feature standard D28 holes, enabling lateral and vertical clamping |
| Flatness | Standard model ±0.1mm/1000mm; nitrided industrial model ±0.2-0.3mm/1000mm |
| Surface Roughness | Ra3.2 |
| Perpendicularity | Vertical face reference 0.1mm/200mm |
| Load-bearing Capacity | 2000-3000kg/m² (significantly higher than D16 system) |
| Structural Configuration | Available as five-sided 3D type or single-sided 2D type; equipped with adjustable support legs for horizontal leveling |
- Main Welding Table Body: Precision-machined platform with D28 hole grid, reinforced rib structure for rigidity
- Support System: Height-adjustable legs, leveling feet, anti-vibration bases for stable horizontal installation
- Modular Fixture Accessories (Optional Full Kit):
- Positioning: Locating pins, angle blocks, datum positioning components
- Clamping: Quick-release clamps, screw-type clamps, pneumatic clamps
- Auxiliary: Support brackets, extension plates, spacers, angle adjusters
Contact our professional sales team to get your customized Professional Fabrication D28 3D Modular Welding Work Table System solution today.
