Factory Direct D28 3D Heavy‑Duty Modular Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/P,D/A,L/C,T/T,Western Union |
| Supply Capacity: | 500 units |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Flatness:
≤0.1mm/m
Hole Standard:
D28, Φ28mm, 100×100mm Grid
Standard Load‑Bearing:
2 T/m²
Perpendicularity:
≤0.05mm/200mm
Surface Hardness (Nitrided):
HRC 42–52
Structure:
3D Five‑Sided Machined
Shipping Terms:
DDP / FOB / CFR /CIF / EXW Available
Hole Center Distance Tolerance:
±0.05mm
Supported Welding Processes:
MIG, TIG, MMA, Plasma Welding
Product Description

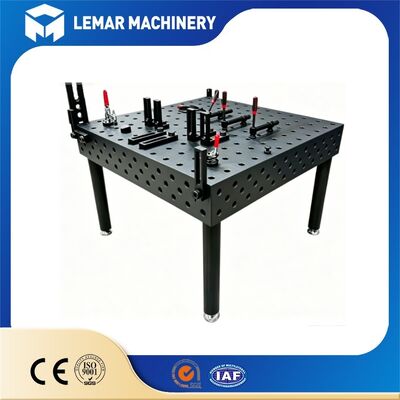

Factory Direct D28 3D Heavy-Duty Modular Welding Table
Our D28 3D modular welding table is factory-manufactured heavy-duty industrial work platform designed for high-precision positioning, clamping, assembly & welding. Five-sided machined working faces with standard D28 hole system enable 3-axis flexible fixturing for complex and heavy-duty workpieces. Plasma nitrided surface provides excellent wear-resistant, anti-spatter & anti-corrosion performance. Factory direct supply supports standard & custom sizes, full certification available for global industrial clients.
Standard Technical Specifications
(Editable according to your actual production parameters)
| Specification | Details |
|---|---|
| Hole Specification | D28 (Φ28 mm), grid 100×100 mm |
| Tabletop Material | Q355 high-strength structural steel / HT300 high-grade cast iron (optional) |
| Tabletop Thickness | 25 mm |
| Surface Treatment | Nitriding (standard) |
| Standard Load-Bearing Capacity | 2 tonnes per square meter |
| Flatness Tolerance | ≤0.1 mm per meter |
| Hole Center Distance Tolerance | ±0.05 mm |
| Perpendicularity of Side Faces to Top Face | ≤0.05 mm/200 mm |
| Available Certifications | CE, Material Test Report, Nitriding Process Report, Dimensional Inspection Report (on request) |
| Optional Accessories | Heavy-duty adjustable leveling feet, anchor base, mobile brake casters, forklift pockets, lifting lugs |
Wide Application Industries
Our D28 3D heavy-duty welding tables are widely applied in:
- Steel structure fabrication
- Construction machinery component manufacturing
- Automotive frame / chassis welding
- Railway & transit equipment parts
- Heavy-duty rack / frame assembly
- Pipe & tubular structure welding
- Precision assembly / inspection tooling
Suitable for MIG, TIG, MMA, plasma welding and other common industrial welding processes.
Frequently Asked Questions
Q1: Can I get custom size D28 welding table?
Yes, we support custom length, width, height, tabletop thickness and special structures. Contact our sales team with your requirements.
Q2: Is CE certification available?
Yes, CE certification can be issued to meet EU market entry requirements.
Q3: Are your tables compatible with other brand D28 fixtures?
Yes, strictly following universal D28 standard, compatible with mainstream D28 modular accessories.
Q4: How about packing & shipping for large tables?
Large-size tables use frame packing + protective corners; small units use export-grade wooden cases. We can advise suitable logistics solution.
Rely on our factory-direct D28 welding tables for stable precision and long-term reliability.
Contact us for custom solutions and bulk-order discounts.
