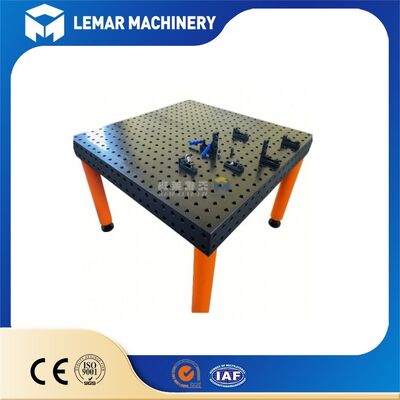

Modular 3D Welding Table D16 Welding Table with Support Legs
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/P,D/A,L/C,T/T,Western Union |
| Supply Capacity: | 500 units/month |
The Modular D16 3D Welding Table with support legs offers an efficient, flexible solution for welding small-to-medium precision workpieces. Centered on a D16 hole pattern and featuring five-sided 3D clamping, a wear-resistant nitrided surface, and adjustable support legs, it delivers high precision, efficiency, and durability. Widely used as an alternative to traditional fixed tooling, it meets the precision welding and assembly requirements of diverse industries.
| Hole System Standard | D16 (φ16mm), 50×50mm grid; positioning holes evenly distributed across five faces (top and four sides), supporting 3D clamping |
|---|---|
| Material | Q355 alloy steel or cast iron; thickness of 8-16mm; bottom reinforcement ribs to prevent deformation |
| Precision | Flatness ≤±0.1mm/m²; hole position accuracy ±0.05mm; surface treated with plasma nitriding for wear resistance, resistance to weld spatter adhesion, and high-temperature resistance |
| Common Dimensions | 1000×800mm, 1000×1200mm, 1200×2400mm, 1500×3000mm |
- Replaces dedicated tooling, significantly reducing costs - A single D16 3D welding table accessory system can replace dozens of dedicated fixtures, making it ideal for high-mix, low-volume production
- Rapid clamping boosts efficiency 3-5 fold - Eliminates the need for manual marking or alignment; positioning is done directly via the grid system, reducing changeover times from hours to minutes
- High repeatability ensures product consistency - Ensures consistent clamping positioning for identical workpieces and controllable welding deformation, making it suitable for batch production and robotic welding
- Multifunctional: Welding, assembly, inspection, and marking - One system replaces multiple pieces of equipment, saving valuable workshop space
- Packaging: Solid wood pallet + waterproof film + carton/wooden crate (prevents deformation during transit)
- Lead time: Standard 15-25 days (including accessories)
- Certifications: CE, ISO9001 (product quality assurance)
Standard load capacity ranges from 800kg to 1500kg, depending on table size and material.
D16 features smaller holes and denser grids, higher positioning accuracy, lighter accessories and lower cost, ideal for small, precise workpieces. D28 is designed for heavy-duty and large workpieces with larger load capacity.
Yes. The D16 welding table can be fixed on positioners for 360° rotation and tilting. It is also compatible with automated welding robot stations.
Yes. We support custom sizes, table height, mobile base with casters, special materials and additional functional structures.
Do not strike an arc directly on the tabletop or use high-current spot welding, which will burn the surface and holes.
The D16 Modular 3D Welding Table equipped with support legs is your ideal solution.
