Metal Processing Plant Standard D28 3D Welding Fixture Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 1-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Tabletop Material:
Cast Iron HT300/High-strength Alloy Steel S355JR (Q355)
Tabletop Thickness:
25 Mm
Working Surfaces:
5 Fully Machined Sides (1 Top + 4 Lateral Sides) With Complete Hole System
Overall Weight:
800–1500 Kg (varies By Dimension)
Locating Hole Diameter:
φ28 Mm (+0.05 ~ +0.15 Mm)
Hole Perpendicularity:
≤0.03 Mm/25 Mm
Hole Wall Roughness:
Ra 1.6–3.2
Tabletop Flatness:
≤0.3 Mm Per 1000 Mm (after Nitriding Treatment)
Lateral Side Verticality:
≤0.1 Mm Per 200 Mm
Product Description

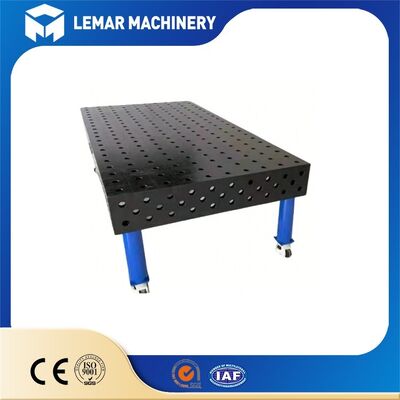

Metal Processing Plant Standard D28 3D Welding Fixture Table
The Metal Processing Plant Standard D28 3D Welding Fixture Table is a core equipment for metal processing standardization, modularity, and flexibility. It features a diameter of 28mm holes and a 100mm grid, five sided machining, and heavy-duty wear resistance.
Suitable for heavy-duty, large-scale, high-precision welding and assembly scenarios, this table significantly improves efficiency, ensures quality, and reduces costs. It is a standard equipment for modern metal processing plants.
Technical Specifications
| Material | High strength alloy steel Q355 or cast iron HT300, with strong rigidity and deformation resistance |
|---|---|
| Process | Five sided precision milling to ensure flatness and perpendicularity; The bottom is densely reinforced with reinforcing ribs, providing better load-bearing and stability |
| Hole System | 28mm positioning hole, 100mm equidistant grid, convenient for three-dimensional clamping and positioning |
| Support Legs | Adjustable height (±50mm), with horizontal adjustable feet, suitable for uneven ground |
| Surface Treatment | Nitriding treatment, high hardness, wear resistance, resistance to welding slag adhesion, easy to clean, industrial preferred |
Internal Structure
- Bottom reinforcement bars: spacing of 400-500mm, criss crossing
- Reinforcement plate thickness: 10-12mm, fully welded to the tabletop, with strong rigidity
- Load bearing: D28 welding table can support a single weight of 2000-3000kg/m², and a single point support can reach 1000kg/leg
Service Life & Accuracy Maintenance
- Normal use (8 hours per day, standardized operation): The accuracy of the 3D welding table is maintained for 5-8 years
- Wear of nitriding layer: Over 10 years, slight wear of the orifice can be repaired
- Prohibited: hammering the table, arc burning the working surface, overloading (>3 tons/m²)
Struggling with welding issues?
Choose Metal Processing Plant Standard D28 3D Welding Fixture Table to fix all problems.
