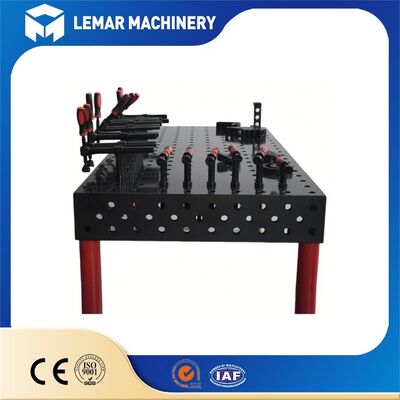

D28 3D Welding Table Custom Size Heavy Duty Modular Fixture Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
custom size 3D welding table
,heavy duty modular fixture table
,D28 welding table with warranty
The D28 3D Welding Table is a robust, flexible 3D welding platform featuring a core design of Ø28mm positioning holes and a 100mm × 100mm grid pattern. Engineered for heavy-duty applications involving thick plates and large structural components, it supports 3D positioning across five faces and offers customizable dimensions. When paired with standard fixtures, it enables rapid clamping and high-precision, repeatable positioning.
- Hole Diameter / Grid: φ28mm, 100×100mm (tolerance ±0.05mm)
- Tabletop Material: Q355 alloy steel / HT300 cast iron; thickness: 25-30mm
- Surface Treatment: Gas nitriding (HV550-680); resistant to weld spatter and wear
- Flatness: ≤0.3mm/1000mm; Perpendicularity: ≤0.1mm/200mm
- Working Surfaces: 5 sides (top + 4 sides); 3D positioning capability
- Load Capacity: 3-8 tons per unit (depending on specifications); modularly expandable
| Countertop Dimensions (L×W×H, mm) | Repeatability | Production Change Time | Workbench Height |
|---|---|---|---|
| 1000×1000×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
| 1000×1200×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
| 1000×1500×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
| 1000×2000×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
| 1500×2000×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
| 2000×2000×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
| 2000×3000×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
| 2000×2400×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
| 3000×1500×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
| 4000×2000×200 | ≤0.05mm | ≤15 minutes | Standard 200mm (customizable) |
Each D28 3D welding table comes with comprehensive documentation including CMM inspection report, hardness report, and visual inspection report.
- Dimensional Accuracy: Full inspection of flatness, perpendicularity, hole spacing, hole diameter, and diagonal error
- Hardness Testing: Spot checks on nitrided layer hardness and depth
- Appearance: Free from cracks, porosity, burrs, and sharp edges
- Load-Bearing Test: Standard tables withstand a 3-5 ton static load for 24 hours without plastic deformation
Packaging: Reinforced solid wood export crate + waterproof film + shock-absorbing foam (protection against impact and rust)
Dimensions: Customized based on tabletop size; shipping marks, dimensions, and weight are labeled on the exterior of the crate
- Sea freight: FOB/CIF port
- Land transport: Trucks, containers
- Air freight: Available for smaller sizes
The D28 3D Welding Table Custom Size Heavy Duty Modular Fixture Table combines heavy-duty construction, modular flexibility and custom sizing to solve all your heavy welding and positioning problems.
Send us your requirements today, and we will tailor the perfect solution for you!
