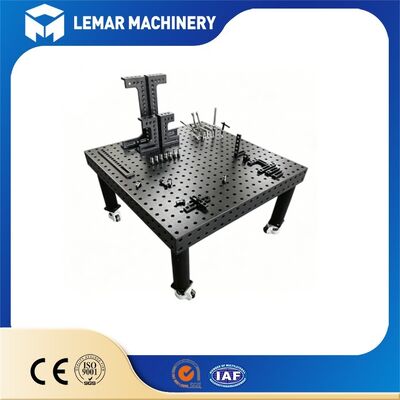

D16 3D Flexible Welding Table Anti Rust Welding Fixture Table

D16 3D Flexible Welding Table Anti Rust Welding Fixture Table

MOQ: 1 PCS
Price: 500-1500 USD
Standard Packaging: 4000*2000*200mm
Delivery Period: 15-20 work days
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: 500 units/month
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
CE certificate.pdf
Standard Flatness:
≤0.1 Mm/m
Precision Version Flatness:
≤0.05 Mm/m
Side Verticality:
0.05 Mm/200 Mm
Main Material:
HT300 Cast Iron / Q355 Structural Steel
Internal Structure:
Reinforced Rib Design
Surface Treatment:
Plasma Nitriding + Blackening
Nitriding Layer Thickness:
0.3 – 0.5 Mm
Surface Hardness:
HV 450 – 630
Table Thickness:
100 Mm / 150 Mm
Highlight:

3D flexible welding table

,

anti rust welding fixture table

,

D16 welding table with warranty

Product Description
D16 3D Flexible Welding Table Anti Rust Welding Fixture Table
D16 3D Flexible Welding Table overview
Product Introduction

The D16 3D Flexible Welding Table Anti Rust Welding Fixture Table is a high-precision, modular, three-dimensional welding and positioning platform. Featuring a standard D16 hole system (16mm diameter holes on a 50×50mm grid) and a rust-resistant, hardened surface, it is specifically designed for the welding, assembly, and inspection of small-to-medium-sized precision workpieces. By enabling rapid 3D flexible positioning via standard fixtures, it replaces traditional custom tooling, significantly enhancing both efficiency and precision.

D16 welding table close-up view D16 welding table in use
Key Technical Parameters
Parameter Specification
Bore diameter φ16mm (tolerance: φ16.065-φ16.149mm)
Hole spacing 50 ± 0.05mm; grid pattern: 50 × 50mm
Hole position accuracy ±0.05mm
Flatness ≤0.1mm/m (precision grade: 0.05mm/m)
Perpendicularity 0.05mm/200mm (side face relative to work surface)
Table material Q355 alloy steel or HT300 cast iron; thickness: 100-150mm; features internal reinforcing ribs for high load-bearing capacity and deformation resistance
Aging treatment Castings undergo annealing and vibratory stress relief to eliminate internal stress, ensuring dimensional stability during long-term use
Rust Resistance

Nitrided layer depth: 0.3-0.5 mm; features a dense oxide layer, salt spray resistance of ≥500 hours, and resistance to rusting in long-term humid environments.

Surface roughness: Ra 3.2 μm; easy to clean, with weld spatter easily removed.

Rust-resistant surface detail
Customization Capabilities
  • Custom Dimensions: Length / Width: Any size from 800×800 to 2000×4000mm; Tabletop thickness: 100/120/150mm; Side height: 100/150/200mm
  • Custom Base Options: Fixed legs, mobile base with casters, electric lifting base (suitable for assembly lines)
  • Hole Pattern Fine-tuning: Localized high-density hole patterns, localized enlarged holes, non-standard hole spacing (small-batch customization
FAQ
What applications is this welding table best for?
Ideal for sheet metal, chassis frames, tube welding, steel brackets, mechanical parts, new energy accessories, education training and robotic welding cells.
Can I connect the welding ground cable directly to the table?
Yes. We design dedicated grounding points on the table. The nitrided surface still maintains excellent conductivity, preventing unexpected sparks and ensuring operator safety.
Are your parts compatible with other brands?
100% compatible. All accessories follow international D16 industry standard, you can mix and match accessories from different suppliers freely.
Do you support worldwide delivery?
Yes, we ship globally to Europe, North America, Australia and Southeast Asia. We can provide EXW, FOB, CIF and DDP shipping terms.
How to maintain the 3D welding table daily?
Clean holes and welding spatter after work, apply thin anti-rust oil weekly, and re-level the table every month. Avoid heavy hammering and direct grinding on the table surface.

Thank you for learning about the D16 3D Flexible Welding Table Anti Rust Welding Fixture Table.

If you have any further questions, technical inquiries or purchasing demands, please feel free to contact us anytime.

We are ready to provide you with reliable products and professional service.
