D28 1000x1000mm 3D Welding Table with Full Welding Kit
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Table Thickness:
25 Mm
Flatness:
≤0.1 Mm / 1000 Mm
Hole Center Distance Tolerance:
±0.03 Mm
Hole Diameter Tolerance:
H7
Squareness:
≤0.1 Mm / 200 Mm
Repeat Positioning Accuracy:
±0.03 Mm
Load Capacity:
2000–3000 Kg/㎡
Nitrided Layer Thickness:
0.2–0.5mm
Fitting Specification:
Universal D28 Accessories
Highlight:
1000x1000mm 3D welding table
,3D welding table with kit
,welding table with full kit
Product Description

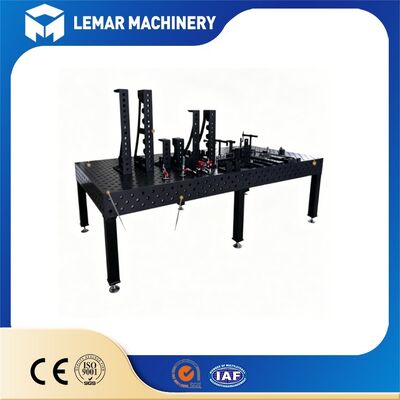

D28 1000x1000mm 3D Welding Table with Full Welding Kit
Product Overview
The D28 1000×1000mm 3D Welding Table with Full Welding Kit comprises a 3D flexible welding platform featuring a D28 hole system, a 1m × 1m tabletop, and five usable working surfaces along with a complete set of standard fixtures. Designed for precision welding, assembly, and inspection, it enables rapid fixture setup and offers high repeatability in positioning, serving as a superior alternative to traditional welding fixtures.
Technical Specifications
| Tabletop dimensions | 1000 × 1000 mm |
| Working surfaces | 5 sides (top + 4 sides) fully machined with complete hole pattern |
| Hole grid | 100 × 100 mm ±0.05 mm; hole center-to-center tolerance ±0.03 mm |
| Flatness | ≤0.1 mm/1000 mm |
| Material | Steel version: Q355/S355J2N Cast iron version: HT300 |
| Surface treatment | Plasma nitriding (HV450-700); resistant to weld spatter, rust, and wear |
| Tabletop thickness | 25 mm |
| Load capacity | 2000-3000 kg/m² |
| Bottom structure | Dense reinforcing ribs; deformation ≤0.02 mm/m |
| Accuracy | Horizontal 0.1/1000 mm, Vertical 0.1/200 mm |
Full Welding Kit Contents
The standard configuration includes the following tooling to meet most welding and assembly requirements:
Positioning and Clamping
- 28mm locating pins, quick-locking bolts (M16), flat clamping plates, angled clamping plates
- 90° squares/positioning blocks, L-shaped supports, 3D connectors, extension arms
- Adjustable clamps, quick-action clamps, screw clamps
Support and Adjustment
- Height support blocks (50/100/150mm), adjustable support legs (±25mm)
- Leveling bolts, floor anchoring kits
Protection and Accessories
- Hole protection plugs, anti-spatter coating/spray, cleaning brush
- Accuracy inspection report, operation manual, tool kit
Core Advantages
- High Precision: Precision machining of hole patterns and surface flatness; repeatability of ±0.03mm ensures welding consistency.
- High Efficiency: Modular design reduces fixture setup time by over 80% and enables rapid switching between product types.
- High Rigidity: Usable on five sides with reinforced bottom ribbing; prevents deformation even with heavy workpieces.
- Low Cost: Replaces dedicated jigs, saving 90% on tooling costs; easy to maintain.
- High Versatility: Suitable for complex welding applications involving vehicle frames, enclosures, piping, construction machinery, and more.
Safety and Certification
CE Certification: All our 3D welding tables comply with the EU Machinery Directive 2006/42/EC.
Safety Design Features
- Rounded table edges to prevent cuts
- Anti-slip and anti-tip support legs
Environmental Compliance
Free from hazardous substances, recyclable, and compliant with industrial environmental standards.
Upgrade your welding performance!
D28 1000×1000mm 3D Welding Table with Full Welding Kit — your ideal solution. Contact us today.
