D28 Series 3D Steel Welding Table with 28mm Holes
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Structure:
3D Five-side Full Holes (Top + Four Side Walls)
Uniform Load:
2.5~3Ton/㎡，Heavy Duty Version Up To 5Ton/㎡
Flatness:
≤0.1mm/1000mm (nitrided Type)
Hole Tolerance:
+0.065~+0.149mm
Trade Term:
FOB , CIF, DDP Available
Side Wall Perpendicularity:
≤0.05mm/200mm
Nitriding Layer Depth:
0.25–0.4mm
Surface Hardness:
HV550~HV680
Diagonal Tolerance:
≤0.08mm Per Meter
Highlight:
3D steel welding table with 28mm holes
,D28 Series welding table with holes
,3D welding table with steel surface
Product Description

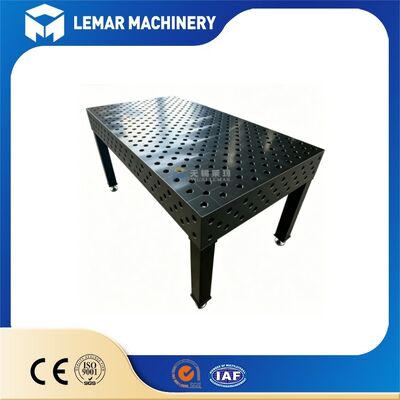

D28 Series 3D Steel Welding Table with 28mm Holes
Product Introduction
The D28 Series 3D Steel Welding Table with 28mm Holes is a modular heavy-duty fixturing platform engineered per international D28 industry standard. It features a universal 100×100mm grid layout with Φ28mm locating holes across the full top surface and four vertical side panels. Built from high-strength Q355 steel with optional nitrided anti-spatter finish, this 3D welding table enables flexible three-dimensional clamping without custom tooling. Widely adopted for structural steel, vehicle frame, machinery component and robotic welding fabrication worldwide.
Core Technical Specifications
- Bore Diameter: Φ28mm (tolerance: 28.065-28.149mm); compatible with globally standardized interchangeable accessories
- Grid Spacing: 100mm × 100mm (±0.05mm); uniform X/Y layout with holes across the top surface and all four side walls (3D capability: clamping possible on five faces)
- Side Walls: 200mm height; densely arranged with standard D28 holes to enable vertical (Z-axis) clamping and true 3D positioning
- Base Material: Q355 high-strength structural steel (steel version); optional HT300 high-grade cast iron version (wear-resistant and weld-spatter resistant)
- Top Plate Thickness: 25mm; features integrally welded internal reinforcing ribs for high load-bearing capacity and deformation resistance
- Precision: Flatness ≤0.1mm/1000mm; hole center positioning accuracy ±0.03mm; side wall perpendicularity 0.05mm/200mm
Standard Sizes and Specifications
| Table Size (L×W mm) | Table Thickness | Standard Working Height | Approx Net Weight | Uniform Load Capacity |
|---|---|---|---|---|
| 1000×1500 | 25mm Q355 Steel | 630mm | 320KG | 2.5 Ton/m² |
| 1200×2000 | 25mm Q355 Steel | 510KG | 2.5 Ton/m² | |
| 1500×2000 | 25mm Q355 Steel | 650KG | 3 Ton/m² | |
| 1500×3000 | 25mm Q355 Steel | 980KG | 3 Ton/m² | |
| 2000×3000 | 25mm Q355 Steel | 1320KG | 3 Ton/m² | |
| 2000×4000 | 25mm Q355 Steel | 2100KG | 3 Ton/m² (Heavy-duty up to 5Ton/m²) |
Remark:
- Hole specification: Φ28mm holes, 100×100mm standard grid, 5-side full hole design(3D).
- Surface option: Gas nitriding / black painting available.
- Custom size, table thickness and working height are acceptable upon request.
Core Product Advantages
- Highly versatile, saving on tooling costs: A single 3D welding table with standard accessories eliminates the need for custom welding jigs when switching between products—ideal for small-batch, high-variety production
- Speeds up clamping by over 60%: Plug-and-play accessories allow complete fixture setup in just 10 minutes, offering massive efficiency boost compared to traditional methods involving manual marking and tack-welding positioning blocks
- High repeatability: Ensures consistent dimensions across batch production and reduces scrap rates
- Durable and rugged: Nitrided surface allows weld spatter to be easily knocked off and resists dents; designed to withstand 8-15 years of continuous factory use without deformation
Warranty and Support
- Warranty Period: The nitrided surface of the welding table is covered by a one-year warranty (free parts replacement for non-man-made damage), and the standard accessory set is covered by a six-month warranty.
- Technical Services: 24/7 online technical support in Chinese and English; on-site commissioning and guidance by overseas engineers available for large-scale equipment
- Lifetime Services: Lifetime supply of original factory parts at factory prices, free optimization of tooling solutions, and technical consultation on equipment selection
Want to upgrade your welding work?
D28 Series 3D Steel Welding Table with 28mm Holes stands as your perfect solution for flexible, precise and efficient workpiece clamping.
