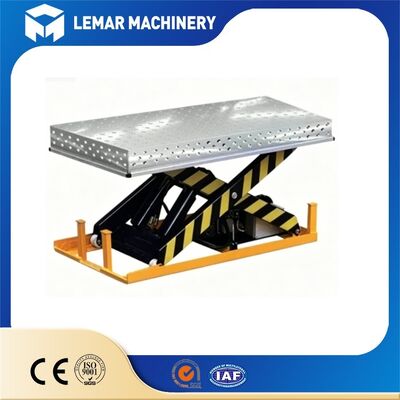

D28 28mm holes 3D Welding Table with Hydraulic Scissor Lifter
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,T/T,Western Union,D/P |
| Supply Capacity: | 500 units/month |
28mm 3D welding table
,hydraulic scissor lifter welding table
,3D welding table with lifter
The D28 28mm holes 3D Welding Table with Hydraulic Scissor Lifter is a combined system comprising a high-precision, flexible 3D welding fixture platform and a hydraulic scissor lift workbench. Designed with a primary focus on heavy-duty welding, flexible fixturing, height adjustability, and ergonomics, it is widely utilized in sectors such as heavy industry, machinery manufacturing, vehicle frame fabrication, steel structure construction, and robotic welding applications.
- Employs a scissor-lift mechanical structure driven by hydraulic cylinders, ensuring smooth lifting and reliable self-locking capabilities
- Equipped with hydraulic foot pedals and/or manual control valves for one-touch, stepless height adjustment
Standard welding benches feature a fixed height, offering poor adaptability for workpieces of varying sizes or different workstation requirements. In contrast, the hydraulic lift model serves multiple purposes, significantly enhancing versatility and utility within the workshop environment.
- High Precision + High Flexibility: The D28 heavy-duty hole system meets precision welding demands while its adjustable lifting base adapts to all operational scenarios
- Heavy-Duty Suitability: Ideal for welding vehicle frames, construction machinery, large-scale frameworks, and structural components
- Cost Reduction & Efficiency Gains: Minimizes need for custom tooling fabrication, reduces workpiece alignment time, and lowers manual labor intensity
- Automation Compatibility: Can be integrated with robotic welding systems, welding positioners, and synchronized fixtures for automated production lines
| Specification | Details |
|---|---|
| Table Dimensions | 800×1000 / 1000×1000 / 1200×1600 / 1500×3000 mm, etc. |
| Hole Pattern | Φ28 mm, 100 mm grid spacing, holes on five faces |
| Table Load Capacity | 2000 kg - 5000 kg |
| Lifting Stroke | 800 - 1600 mm |
| Drive System | Electro-hydraulic / Manual-hydraulic |
| Mobility | Fixed / Mobile (with casters) |
Major Certifications: Our welding tables hold CE certification and ISO 9001 quality certification. Select high-end models are accompanied by BV and SGS inspection reports, enabling them to be exported to global markets.
Warranty Standards: The complete unit carries a one-year warranty. For the hydraulic system and structural frame, free repairs or component replacements are provided for non-human-induced damage; warranty for nitrided and cast iron tabletops may be extended to two years.
After-Sales Support: The manufacturer provides installation guidance, commissioning videos, and a full supply of spare parts. For large-scale equipment, on-site installation and on-site training services are available.
