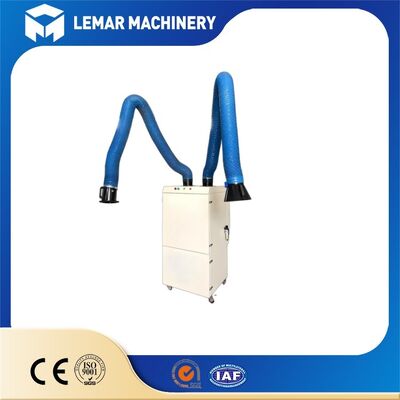

Portable Welding Dust Collector for MIG TIG Stick Welding
| MOQ: | 1 |
| Price: | 100-500 USD |
| Standard Packaging: | 3000*2000*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,D/P,T/T,Western Union,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
HY-2.2KW
Document
Application:
MIG / TIG / Stick / SMAW Welding
Structure:
Mobile Cart With 360° Flexible Suction Arm
Power Supply:
220V / 1PH / 50Hz (custom 380V Available)
Air Flow:
180–220 M³/h
Static Pressure:
1800–2200 Pa
Motor Power:
1.1kW – 1.5kW
Noise Level:
≤65–70 DB(A)
Dimension (L×W×H):
Approx. 550×500×1200mm
Net Weight:
60–80 Kg
Highlight:
180–220 m³/h air flow Welding Dust Collector
,360° flexible suction arm Welding Fume Extractor
,Multi-stage filtration system Portable Welding Smoke Removal Unit
Product Description
Portable Welding Dust Collector for MIG TIG Stick Welding
The Portable Welding Dust Collector for MIG TIG Stick Welding is a mobile, compact industrial dust collection system specifically designed for welding operations. It effectively collects and filters welding fumes, harmful vapors, metal dust, and odors in real time, protecting welders' respiratory health and improving the workshop environment. It is compatible with various mainstream welding processes.
| Power supply | 220V / 1PH / 50Hz (custom 380V available) |
| Air flow | 180–220 m³/h |
| Suction arm length | 2m / 3m (optional) |
| Static pressure | 1800–2200 Pa |
| Suction arm diameter | Ø140mm / Ø160mm |
| Arm rotation | 360° flexible positioning, self-supporting |
Core structure
- Suction arm/hood: Flexible and 360° positionable, positioned close to the welding torch to capture fumes and dust.
- Fan system: Provides suction to draw fumes and dust into the main unit.
- Multi-stage filtration system (key component):
- Pre-filter: Intercepts large welding slag particles and sparks.
- Main filter cartridge/HEPA high-efficiency filter: Filters ultra-fine metal dust.
- Activated carbon/odor removal layer: Adsorbs odors, ozone, and harmful gases.
- Body and casters: Portable and stable placement.
- Electrical control section: Switch, speed control, overload protection, filter blockage alarm.
Portable core advantages
- Portable and flexible deployment: No fixed piping required, ready to use wherever needed.
- Compact size and moderate weight: Suitable for small spaces and multi-station rotation.
- Low noise and high airflow: Balances suction power with working comfort.
- Fire and explosion-proof design: Flame-retardant mesh and filter elements prevent ignition from welding sparks.
- Cleanable/replaceable filter elements: Supports pulse cleaning and manual cleaning, reducing operating costs.
- Compliant and safe: Meets occupational health dust limits and workshop environmental requirements.
Maintenance and usage costs
- This portable welding dust collector for MIG, TIG, and stick welding utilizes a multi-stage filter structure. The primary filter media blocks large particles, while the main filter cartridge filters fine dust, resulting in a longer service life.
- Filter replacement is simple; the filter can be removed and installed by opening the side cover without the need for specialized tools.
- Some models support filter cleaning (pulse/manual), which extends the replacement cycle and reduces consumable costs.
- No external ductwork or civil engineering modifications are required; it's plug-and-play, with virtually zero installation costs.
