Mobile Welding Smoke Removal Unit for On-site Welding Jobs
| MOQ: | 1 |
| Price: | 1-500 USD |
| Standard Packaging: | 3000*2000*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
WM-1.1
Document
Power:
0.75kW – 2.2kW
Noise Level:
≤65–72 DB(A)
Mobility:
4 Castors With Brakes
Dimensions:
Approx. 550×550×850 Mm
Net Weight:
70–120 Kg
Application:
MIG/TIG/ARC/Stick Welding
Air Flow:
380–1100 M³/h
Vacuum Pressure:
1800–2800 Pa
Filter Area:
10–20 M²
Highlight:
380–1100 m³/h Air Flow Welding Dust Collector
,1800–2800 Pa Vacuum Pressure Portable Welding Fume Extractor
,4 Castors with Brakes Mobile Welding Smoke Removal Unit
Product Description

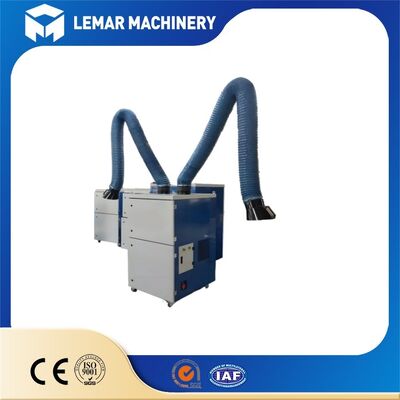

Mobile Welding Smoke Removal Unit for On-site Welding Jobs
The Mobile Welding Smoke Removal Unit for On-site Welding Jobs is a mobile, portable, self-powered industrial environmental protection device specifically designed for on-site welding, emergency repairs, outdoor construction, and welding scenarios without fixed workstations. It collects and filters welding fumes, toxic smoke, metal dust, and harmful gases in real time, protecting the health of welders, improving the working environment, and meeting environmental emission requirements.
| Air Flow | 380–1100 m³/h |
| Vacuum Pressure | 1800–2800 Pa |
| Filter Area | 10–20 m² |
| Filter Efficiency | ≥99.9% @ 0.3μm |
| Filter Type | Hepa + Sparking Arrestor |
| Power Supply | 220V / 380V, 50/60Hz |
Core Definitions and Uses
- Core Functions: On-site capture of welding fumes → High-efficiency filtration and purification → Discharge of clean air
- Applicable Scenarios: Locations without fixed exhaust pipes, outdoor construction sites, on-site repairs, mobile welding points, steel structure sites, shipbuilding sites, pipeline welding sites
Problems Solved:
- Hazards of inhaling welding fumes (iron oxide, manganese, chromium, nickel, and other heavy metal dust)
- Heavy smoke and poor visibility at the site, posing safety hazards
- Environmental protection inspections and occupational health compliance requirements
- Traditional fixed dust removal equipment is immobile and cannot cover multiple work points
Key Features
- Highly Mobile
No installation required, plug-and-play, suitable for multiple, scattered, and on-site welding applications. - High-Efficiency Near-Source Dust Extraction
The suction arm can be directly aimed at the welding torch, and the welding fumes are extracted as soon as they are generated, preventing diffusion. - Safety Design
Features a spark arrestor, flame-retardant filter element, and overheat protection, suitable for complex on-site environments. - Flexible Adaptation
Can be equipped with suction arms of different lengths and different airflow rates, suitable for manual welding, gas shielded welding, TIG welding, carbon arc gouging, etc. - Low Maintenance, Easy Filter Replacement
Most models support pulse cleaning, and the filter element is replaceable, suitable for long-term use on construction sites.
Typical application scenarios
Mobile Welding Fume Extraction Unit for On-site Welding Jobs - Main Practical Applications:
- On-site steel structure installation, bridge construction sites, and transmission tower construction
- On-site pipeline welding and emergency repair of pressure vessels
- On-site work on ship decks/cabins
- Outdoor maintenance of construction machinery and mining equipment
- Equipment maintenance, temporary welding stations, and mobile repair workshops
- Scattered work sites without fixed fume extraction systems
