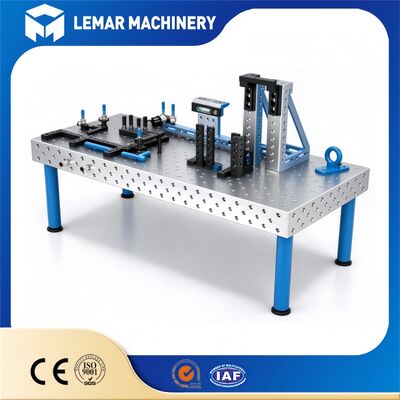

High Precision D28 Modular Welding Table for Automotive Fabrication
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 2040mm*1040mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Verticality:
≤0.1mm/200mm
Customization Capabilities:
Supports Customization/Multiple Units Splicing
Precision:
0.1
Export Port:
Shanghai
Thickness:
25mm
Flatness:
≤0.1mm/1000mm
Working Face:
5-Sided Precision Machining
Production Capacity:
50000PCS/Year
Origin:
Jiangsu Wuxi
Product Description
High Precision D28 Modular Welding Table for Automotive Fabrication
Product Overview
This high precision D28 modular welding table is purpose-built for automotive manufacturing and sub-assembly welding workflows. It adopts a standardized D28 hole grid system to support fast fixture layout and flexible repositioning of clamps, stops and locators. The rigid Q355 steel plate undergoes precision CNC machining and optional nitriding treatment to lock in consistent geometric accuracy under repeated clamping and welding heat cycles. It is engineered to meet the tight tolerance requirements of automotive OEM and tier component production, reducing jig adjustment time and improving the repeatability of welded parts.
Core Advantages
- Standard D28 hole grid matches universal fixture accessories, enabling quick rearrangement for different automotive workpiece shapes.
High precision CNC machining ensures stable hole positioning, supporting reliable repeated assembly for automotive subframes and brackets.
Optional nitriding surface treatment boosts surface hardness and wear resistance, while lessening weld slag adhesion on the tabletop.
Heavy rigid plate structure effectively suppresses thermal deformation caused by continuous welding, protecting long-term precision.
Screw adjustable foot cup levelling design compensates for uneven workshop ground and maintains consistent table flatness.
All supporting fixtures are fully CNC machined to avoid burrs and thread damage during frequent clamping operations.
Main Application Scenarios
- This high precision D28 modular welding table targets automotive fabrication scenarios. It fits welding and assembly of automotive subframes and suspension brackets. It works for fixture setup of auto chassis parts and structural subassemblies. It supports robotic welding cell positioning for mass automotive component production. It is suitable for prototype verification of new vehicle parts. It also handles batch fabrication of automotive pipe and frame assemblies. It can be used for custom fixture building for automotive tier suppliers.
Customer Feedback
Frequently Asked Questions
Q1:Can this D28 flexible welding table work with different brands of robotic welding arms?
Yes. It adopts standard D28 modular hole system. As long as your robot arm has accessible working range covering the table surface, normal collaborative operation can be realized. No special adaptation transformation for the robot body is needed.
Yes. It adopts standard D28 modular hole system. As long as your robot arm has accessible working range covering the table surface, normal collaborative operation can be realized. No special adaptation transformation for the robot body is needed.
Q2:What should I do if welding spatters accumulate heavily on the table surface during robot continuous running?
If you choose the nitrided surface version, spatter can be cleared conveniently without damaging the base material. Regular surface cleaning is suggested to keep hole precision and clamping smoothness.
If you choose the nitrided surface version, spatter can be cleared conveniently without damaging the base material. Regular surface cleaning is suggested to keep hole precision and clamping smoothness.
Q3:Does the table flatness drop quickly under long-time robotic cyclic pressure?
No. The whole table body is made of thick Q355 steel and processed by stress-relief treatment. Reasonable load usage will not bring fast flatness deterioration for automated production. Please follow our load limit suggestion.
No. The whole table body is made of thick Q355 steel and processed by stress-relief treatment. Reasonable load usage will not bring fast flatness deterioration for automated production. Please follow our load limit suggestion.
Q4:Can I expand the working area by connecting multiple D28 tables for large-size robot welding workpieces?
Multiple tables can be spliced together to expand working dimensions. Ensure joint flatness during installation, so your robotic welding arm can move smoothly across connected table surfaces.
Multiple tables can be spliced together to expand working dimensions. Ensure joint flatness during installation, so your robotic welding arm can move smoothly across connected table surfaces.
Q:Is on-site technical guidance available when matching this table with my existing robotic welding station?
We provide detailed assembly and level-adjustment documents. For overseas customers, we offer remote technical support to guide your engineers during table installation and robot-table matching debugging.
We provide detailed assembly and level-adjustment documents. For overseas customers, we offer remote technical support to guide your engineers during table installation and robot-table matching debugging.
Contact Information
If you are looking for a reliable high precision D28 modular welding table to upgrade your automotive fabrication line, share your workpiece size and clamping requirements with our engineering team. We will prepare a complete quotation with matched accessory recommendations and full technical documentation. Contact us now to get your customized automotive welding solution.
