D28 Welding Table For Precision Automotive Assembly Work
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table for automotive assembly
,3D welding table precision assembly
,D28 welding table precision work

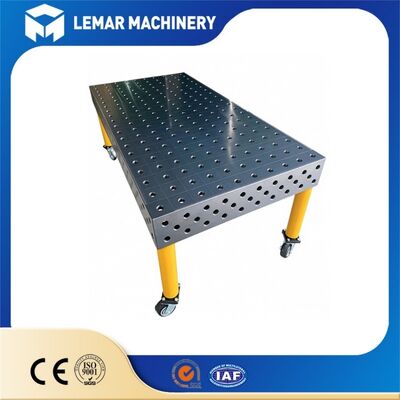

Our D28 welding table is engineered to deliver stable, repeatable positioning for precision automotive assembly and fixture fabrication. Built with a solid thick steel plate and standard 50 mm hole spacing, this modular table supports fast jig setup, flexible clamping and consistent dimensional accuracy for automotive production workflows. It undergoes professional nitriding treatment to boost surface hardness and wear resistance, making it suitable for long-term daily use in OEM workshops and component manufacturing lines. Every unit passes strict geometric inspection before shipment to guarantee reliable performance for high-precision welding and assembly tasks.
| Parameter | Specification |
|---|---|
| Grid System | D28 – 28 mm holes on 100 mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 gray cast iron / Q355 steel |
| Tabletop Thickness | 100 mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1 mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500 mm |
| Leg Height | 850 mm (custom heights available) |
| Leg Construction | 80×80 mm square tube, 5 mm wall |
| Leveling Feet | M24 threaded, 50 mm pad |
| System | Material | Size (mm) | Weight (kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron / Q355 steel | 1000×1000×200/150 | 300 |
| D28/D16 | HT300 cast iron / Q355 steel | 1000×2000×200/150 | 520 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200×1200×200/150 | 400 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200×2400×200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×1000×200/150 | 420 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×1500×200/150 | 600 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×2000×200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×3000×200/150 | 1150 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000×3000×200/150 | 1500 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000×4000×200/150 | 2100 |
The thick Q355 base plate minimizes deformation under heavy welding loads. Tight flatness and position tolerances keep your automotive fixtures aligned batch after batch, avoiding cumulative errors during mass assembly.
The 550–600 HV nitrided layer protects the hole grid and tabletop from arc spatter, clamping marks and abrasion. This treatment extends service life and maintains hole accuracy without frequent rework.
The 28 mm hole system matches widely used modular clamps, locators and angle brackets. You can mix and match accessories quickly to build custom jigs for different automotive parts without custom modification.
You can combine multiple tables or extend fixture zones freely. The grid pattern supports low-volume prototype work and steady high-volume production for chassis, subframe and body component assembly.
Adjustable support legs let operators calibrate the table easily on uneven workshop floors. Stable leveling preserves precision and reduces measurement drift during long welding cycles.
Each table comes with inspection reports covering flatness, hole tolerance and hardness data. These documents satisfy the quality traceability requirements of automotive OEM suppliers.
- Automotive Manufacturing – Chassis frames, suspension arms, and subframe welding.
- Construction Machinery – Excavator booms, loader brackets, and bulldozer structures.
- Railway and Transportation – Bogie frames and railway car body components.
- Shipbuilding and Offshore – Steel deck sections, pipe supports, and structural assemblies.
- Aerospace – Landing gear components and structural weldments (with precision variants).
- General Steel Fabrication – Large steel structures, pipe racks, and industrial equipment frames.
D28 uses 28 mm holes with a 100×100 mm grid. It is designed for heavy-duty welding – higher load capacity (5 tons/m²) and better rigidity for thick plates and large workpieces.
Yes. Custom table sizes, hole layouts, and surface treatments are available. Send your drawings or specifications, and our engineering team will design accordingly.
A full range of D28-standard accessories is available: clamps, V-blocks, supports, locating pins, angle plates, and adjustable brackets. All are interchangeable with no special tools required.
Stress-relieved ductile iron with HB 180–220 hardness. Keep the surface clean and avoid local overloading. Re-machining service is available to restore precision if needed.
Standard lead time is 15–30 working days. Tables are packed in heavy wooden crates with anti-rust oil, VCI paper, and foam padding. Sea, air, and courier shipping are available with full customs documentation.
Yes – remote video guidance, online technical support, and on-site service (on request). A 12-month warranty and fast reordering based on purchase history are included.
If you are sourcing reliable precision welding tables for your automotive assembly lines, send your dimension requirements and accessory list to us. We will prepare a full quotation with EXW, FOB and CIF terms for your target port. Get your tailored solution for automotive fixture fabrication today.
