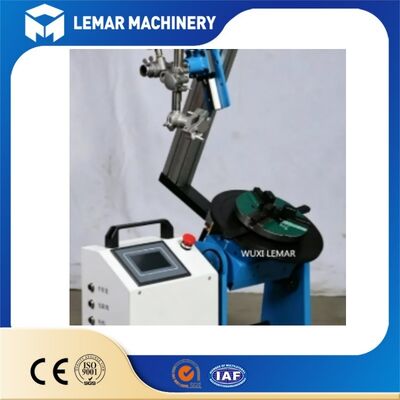

200kg Welding Positioner, Single Axis Servo Positioner for Robot Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 60.00cm * 37.00cm * 50.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
200kg welding positioner
,single axis servo positioner
,robot welding positioner
This 200kg welding positioner is specially developed for robotic welding workstations. It supports indexing positioning and continuous coordinated motion with robots. It can be matched directly with modular welding tables and interchangeable welding fixtures, making it suitable for cobots and 6-axis industrial robot welding solutions. Lemar Machine offers OEM & ODM service and private labeling. Communication interfaces, chucks, pneumatic centers and torch holders can be customized to meet North American clients' requirements. Widely used for pipes, flanges, tanks and structural part robotic welding. Adopts worm and worm gear drive for smooth and low-vibration running.
- Robot linkage ready: This 200kg positioner comes with reserved communication ports. It supports continuous synchronized motion and index positioning with welding robots. It works perfectly with modular welding tables and custom fixtures to build a complete robotic welding station.
- Stable load & high precision: Rated load 200kg. Precision worm gear reducer, infinitely variable rotation speed and high repeat positioning accuracy. Adjustable tilting angle keeps workpieces in ideal position for consistent welding quality.
- Modular expandable design: Standard mounting holes on the tabletop for quick installation of custom welding fixtures, mounting plates and quick-change chucks. We can deliver full sets together with our modular welding tables for one-stop robotic fixturing packages.
- Dual control modes: Handheld control box + foot pedal. Manual setup and automatic cycle modes available, for both manual welding and robotic automated welding.
| Parameter | Specification |
|---|---|
| Model | BWJ-200 200kg Welding Positioner |
| Rated Horizontal Load | 200 kg |
| Rotation Speed | 0.5–5 r/min, stepless speed regulation |
| Tilting Range | 0–90° adjustable |
| Drive Type | Worm gear motor / Servo option recommended for robot synchronization |
| Control Mode | Hand pendant + foot pedal; servo version supports Modbus and other robot communication protocols |
| Table Diameter | 400 mm (customizable) |
| Repeat Positioning Accuracy | High accuracy, worm gear reducer |
| Optional Accessories | Self-centering 3-jaw chuck, pneumatic center, torch bracket, through-hole design, custom welding fixtures |
| Combination Options | Matched with modular welding tables and quick-change fixtures for complete robotic welding fixturing packages |
- Robotic welding cells
- Cobot welding units
- Pipe & flange circumferential welding
- Tank and shell welding
- Sheet metal structural automated welding
- Matched with modular welding tables and quick-change fixtures for OEM projects of North American automation integrators
- Lemar Machine provides OEM / ODM manufacturing and private label service for 200kg welding positioners.
- We support custom engineering, drawing development and long-term partnership for the North American automation market.
- We can supply robotic welding tables, fixturing systems and positioners as a full package.
- We provide product catalogs, technical datasheets and project references for your review.
- Online technical meetings are available to discuss your robotic welding requirements.
- Packaging: Standard export wooden case, fixed with shockproof cushioning
- Shipping port: Shanghai / Ningbo port
- Delivery lead time: 15–25 working days (depends on standard or customized configuration)
- Logistics: Support sea freight, air freight; we can cooperate with your designated forwarder
Yes. Choose the servo version. It supports indexing positioning and continuous coordinated motion, compatible with mainstream robot brands via Modbus communication.
Sure. We develop custom welding fixtures, mounting plates and modified table sizes according to your workpiece and robotic station layout. OEM private label is acceptable.
Standard model MOQ: 1 unit. For customized or private label orders, MOQ will be quoted separately.
Yes. We are able to offer one-stop packages: welding positioner + modular welding table + quick-change fixturing.
Yes, CE documents are available for export.
12 months warranty from the date of shipment. We offer remote troubleshooting and spare parts support.
