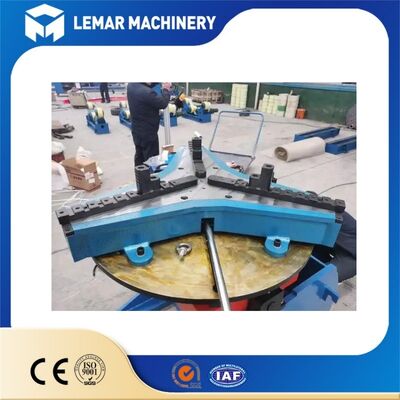

Welding Positioner With 3 Jaw Self-Centering & 4 Jaw Independent Chuck
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 38.00cm * 37.00cm * 38.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
WP-3
Document
Product Name:
Welding Positioner With 3 Jaw & 4 Jaw Chuck
Load Capacity:
50kg / 100kg / 200kg / 300kg Optional
Chuck Type:
3-Jaw Self-Centering, 4-Jaw Independent
Chuck Size:
200mm / 250mm / 300mm / 400mm Optional
Tilt Angle:
0° - 90°
Rotation Speed: Stepless Variable Speed:
Stepless Variable Speed
Control Mode:
Foot Pedal + Control Box
Compatible Welding Process:
SAW, MIG, TIG
Application:
Pipe, Tank, Pressure Vessel, Cylinder Workpiece
Highlight:
3 jaw self-centering welding positioner
,4 jaw independent chuck welding positioner
,welding fixture table positioner
Product Description
Product Overview
This rotary welding positioner supports an interchangeable 3-jaw self-centering chuck and 4-jaw independent chuck. It rotates and tilts workpieces for circular seam welding and is compatible with SAW, MIG, and TIG welding processes. The 3-jaw chuck clamps round parts quickly, while the 4-jaw chuck accommodates square and irregular workpieces.
Product Features
- Two optional chuck types to meet different clamping requirements
- 0°–90° tilting with stepless rotation speed adjustment
- Foot pedal control for hands-free operation by the welder
- Hardened reversible jaws for stable clamping without slipping
- Heavy welded frame that resists vibration during continuous welding
- Reserved interface for matching with welding power sources and oscillators
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | Welding Positioner with 3 Jaw & 4 Jaw Chuck |
| Load Capacity | 50 / 100 / 200 / 300 kg (optional) |
| Chuck Type | 3-Jaw Self-Centering, 4-Jaw Independent |
| Chuck Size | 200 / 250 / 300 / 400 mm (optional) |
| Tilt Angle | 0° – 90° |
| Rotation Speed | Stepless variable speed |
| Control Mode | Foot pedal + control box |
| Compatible Welding Process | SAW, MIG, TIG |
| Application | Pipe, tank, pressure vessel, cylinder workpiece |
| Frame Material | Heavy cast steel |
| Jaw Material | Hardened alloy steel |
| Jaw Feature | Reversible jaws for inner & outer clamping |
Why Choose Our Unit
- Factory-direct supply with fast delivery for standard models
- Runout inspection before packing to guarantee precision
- Simple chuck replacement without extra tools
- Custom load capacity, chuck size, and voltage available
- Professional after-sales technical guidance
Packaging & Shipping
- Packed in a solid export wooden case
- Internal anti-collision and rust-proof protection
- Quotations available under EXW, FOB, and CIF trade terms for your SAW, MIG, and TIG welding projects. Please let us know your nearest destination port in advance if you require a CIF offer.
- Delivery within 2–4 weeks
After-Sales Service
- 12-month warranty for the whole machine
- Online installation and operation guidance
- Spare jaws and wearing parts available for order
- Fast response for technical troubleshooting
FAQ
What is the difference between the 3-jaw and 4-jaw chuck?
The 3-jaw self-centering chuck is designed for round pipes, while the 4-jaw independent chuck is suited to square and irregular parts.
Can it work with SAW welding?
Yes, it supports SAW, MIG, and TIG welding processes.
Can I change the chuck easily?
Yes, the chuck can be replaced quickly.
Is the foot pedal included?
Yes, the foot pedal is included as a standard accessory.
Can you make customized capacity?
Custom load capacity and chuck size are acceptable.
