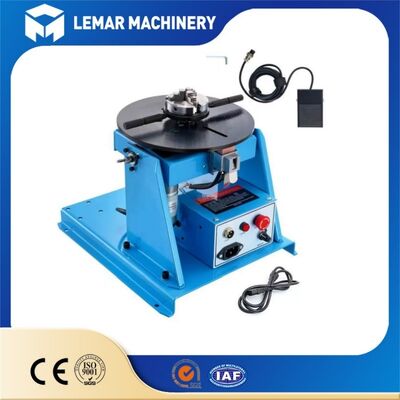

Mini Welding Positioner 10kg Capacity, Rotary Turning Table with Chuck
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 38.00cm * 37.00cm * 38.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-1
Document
Model:
10kg Welding Positioner
Rated Loadight:
10kg (Horizontal)
Vertical Load:
5kg
Table Diameter:
180mm
Rotation Speed:
2-20r/Min, Stepless Adjustable
Motor Power:
0.18kw
Input Voltage AC:
110V/220V, 50/60Hz
Operation Control:
Foot Pedal + Manual Control
Colour:
Customized
Highlight:
Mini Welding Positioner 10kg Capacity
,Rotary Turning Table with Chuck
,Welding Fixture Table 10kg
Product Description
Product Overview
This 10kg benchtop welding positioner is a light-duty rotary turning device designed for small cylindrical workpieces. It supports 0–90° tilting and stepless speed adjustment, and comes equipped with a 125mm three-jaw self-centering chuck. It is widely used for circular seam welding of small pipes, cylinders, hardware components, and metal art pieces. CE certified and manufactured by Wuxi Lemar.
Technical Parameters
| Item | Specification |
|---|---|
| Rated Load Capacity | 10kg |
| Tilt Angle Range | 0–90° |
| Rotation Speed | 0.5–6 rpm, stepless adjustable |
| Standard Chuck | 125mm 3-jaw self-centering chuck |
| Drive Motor Power | 90W |
| Working Voltage | 110V / 220V optional |
| Optional Accessory | Foot pedal |
| Certificate | CE |
| Packing Method | Plywood case |
| Place of Origin | Wuxi, Jiangsu, China |
Product Structure
- Thick cast iron base with good rigidity, reducing vibration during rotation.
- Integral tilting bracket for stable locking at any angle within 0–90°.
- High-precision 3-jaw self-centering chuck for fast centering and clamping.
- High-precision worm gear reducer for steady transmission and low backlash.
- Independent speed control box, separated from the main machine.
- Forward and reverse rotation function.
- Reserved interface for foot switch connection.
Application Scenarios
- Circumferential seam welding of small stainless steel pipes.
- Assembly welding of mini pressure cylinders and round shells.
- Rotary welding and polishing of metal handicrafts.
- Circular welding processing of small hardware fittings.
- Welding assembly of sensors and electrical housings.
- Welding skill training in vocational schools.
- Rotary spraying, sanding, and visual inspection of round parts.
Daily Maintenance
- Clean welding spatter and dust from the chuck surface every day.
- Check and replenish reducer lubricating oil every 3 months.
- Regularly check all fastening bolts and tighten any that are loose.
- Keep the control box dry and away from welding splash and moisture.
- Strictly do not exceed the 10kg rated load.
- Avoid heavy impact to the chuck jaws.
- Cut off the power supply when the machine is idle for a long period.
Frequently Asked Questions
Q: Can this positioner work under 110V?
A: Yes, both 110V and 220V versions are available as options.
Q: Does the package include a foot pedal?
A: The foot pedal is an optional accessory and is not included as standard.
Q: What is your production lead time?
A: 3–7 working days for the standard model.
Q: How long is the warranty period?
A: 12 months warranty starting from the date of shipment.
Q: Can you provide OEM or custom service?
A: Yes, we support OEM according to customer requirements.
