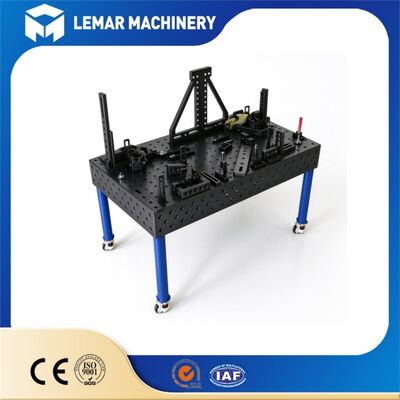

Flatness D28 Modular Welding Table in Robotic Welding Cells
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 2040mm*1040mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 modular welding table
,3D welding table robotic cells
,flatness welding table D28
The Flatness D28 Modular Welding Table is engineered to integrate seamlessly within robotic welding cells, combining modular fixture flexibility with strict planar accuracy for automated metal joining processes. Adopting the industry-standard D28 hole grid with a 100 × 100 mm pitch, this platform allows rapid reconfiguration of clamping assemblies to adapt to changing workpiece geometries without permanent modification.
The tabletop undergoes thorough stress relief and nitriding processing to lock in stable flatness under continuous robotic operation. Its rigid modular construction minimizes positional drift, ensuring robotic welding coordinates remain consistent between production batches. It empowers manufacturers to switch product families quickly while maintaining the high precision demanded by automated welding systems.
- Modular reconfigurable fixture layout. The universal D28 hole pattern lets operators rearrange clamps and locating components to accommodate new workpieces within robotic cells rapidly.
- Preserved flatness under cyclic automated loads. Stress-relieved base material prevents gradual warping even after long, repeated robotic clamping and thermal cycling.
- Optimized rigidity for automated coordinate consistency. Reinforced table structure reduces micro-shifts that can create weld errors in robot-programmed paths.
- Nitrided surface protects against robotic workflow wear. The hardened layer resists scratches, spatter marks and abrasion from frequent fixture assembly and disassembly.
- Dual substrate material options tailored for automation. Steel plate delivers fast lead times, while cast iron provides superior vibration dampening for high-speed robotic arms.
- Complete measurable flatness validation. Every unit passes multi-point planar scanning before shipment, with inspection footage and reports provided for factory acceptance.
This modular D28 welding table fits robotic welding cells for agricultural equipment frames, construction machinery subassemblies, transport chassis components and custom alloy metal structures. It supports both low-volume prototype development and high-volume batch automated welding. It is widely used in flexible manufacturing workshops where frequent product changeovers are required, and it also serves for pre-production robot program verification and fixture trial assembly.
The modular D28 system removes the need for custom dedicated jigs for every part. You can reconfigure fixtures on the same table when switching to new workpieces for robot welding.
The nitrided surface and stress-relieved tabletop resist indentation and deformation. Proper operation maintains the designed flatness across long-term automated production cycles.
Yes. Multiple D28 modular tables can be connected together to build a larger continuous working surface for oversized workpieces within your robotic cell layout.
We can customize support leg height and supply adjustable legs upon request to align the table surface with your robot working envelope.
Share your robotic cell layout and workpiece requirements with our engineering team to get custom layout suggestions, a full fixture catalog and a complete commercial quotation. We will craft a modular D28 welding table solution to fit your flexible automated welding production.
