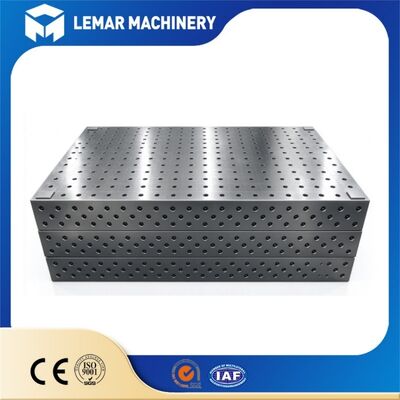

Heavy-Duty D28 Welding Table for Stainless Steel Welding
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table stainless steel
,heavy-duty 3D welding table
,stainless steel welding table
This heavy-duty D28 welding table is engineered specifically for stainless steel welding and assembly tasks. Featuring the standard D28 hole grid system with 100 × 100 mm hole spacing, it delivers repeatable precision for clamping thin and thick stainless steel workpieces. The tabletop undergoes precise stress relief and nitriding treatment to withstand hot welding spatter and frequent fixture repositioning. Its robust reinforced structure maintains dimensional stability under heavy stainless steel assemblies. It minimizes workpiece shifting during TIG and MIG welding operations, reducing rework caused by positioning errors. This work platform supports both manual fabrication and automated robotic welding for stainless steel components.
| Parameter | Specification |
|---|---|
| Model | D28 3D Welding Table |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
- Superior spatter resistance for stainless steel welding. The nitrided surface layer prevents burn marks and surface abrasion from high-temperature stainless steel welding spatter.
- High-rigidity, heavy-load construction. Reinforced side panels and a multi-support leg design prevent table deformation when clamping large stainless steel frames.
- Precise positioning to avoid stainless steel distortion. The consistent hole grid keeps workpieces fixed firmly and reduces thermal shifting during welding.
- Flexible D28 fixture compatibility. A full range of locating blocks, clamps, and pins can be arranged freely to fit irregular stainless steel parts.
- Dual tabletop material selection. Buyers can choose steel plate for cost efficiency or cast iron for enhanced vibration damping in stainless steel fabrication.
- Strict pre-shipment quality verification. Every finished table passes dimension, hardness, and flatness testing before packing and delivery.
This heavy-duty D28 welding table is ideal for stainless steel cabinet fabrication, pressure vessel component welding, pipe assembly, stainless steel frame manufacturing, and food equipment part production. It performs reliably in workshops processing stainless alloy materials. It fits manual welding stations and robotic welding cells used for stainless metal processing. It also serves for prototype building and batch production of stainless structural parts.
Yes. The D28 standard fixture matching precision is high, which can fix thin-walled tube frames stably, avoid shaking and deformation during welding, and ensure the flatness and verticality of frame finished products.
Absolutely. We support personalized structural reinforcement customization according to your heavy-duty frame processing needs to improve the overall load-bearing capacity and stability of the workbench.
All standard D28 series fixtures, clamping blocks, positioning pins, and connecting accessories are fully compatible, which can realize flexible combination for different frame shapes.
The table adopts an integral thick steel plate and professional high-temperature-resistant treatment, with stable physical properties. It will not deform or warp under normal frame welding temperature, maintaining long-term processing accuracy.
Yes. The standardized modular design supports seamless splicing of multiple workbenches, which can expand the operation area arbitrarily to meet the processing needs of oversized frames.
Conventional standard models have sufficient stock for fast delivery. Customized size and reinforced structure products take about 15 to 25 working days according to the customization difficulty.
Reach out to our sales team if you need accessory lists, technical drawings, or a complete commercial quotation for your stainless steel welding project. Our team will analyze your fabrication demands and deliver a tailored solution promptly.
