1000mm Longitudinal Straight Seam Welding Machine for Cylinder & Tank Long Seam Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 1500.00cm * 130.00cm * 120.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
1000mm longitudinal seam welding machine
,straight seam welding machine for cylinders
,tank long seam welding machine

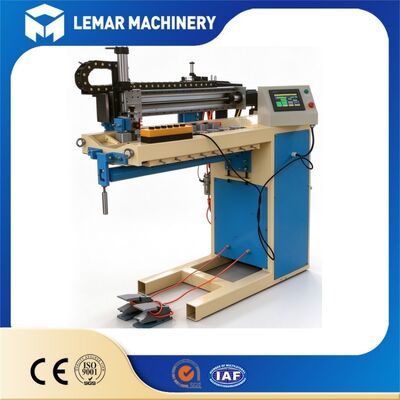

This 1000mm longitudinal straight seam welding machine is specially developed for cylindrical workpiece longitudinal seam welding. Pneumatic clamps fast fix sheet metal. Welding torch moves automatically along high-precision linear guide rail. Copper backing ensures welding penetration and reduces plate deformation. Widely used for stainless steel barrels, small tanks, heat exchanger shells and pipe segments. Support TIG and MIG welding process.
- 1000mm effective welding length, ideal for medium-long straight seam cylinder fabrication
- PLC + touch screen control, easy to adjust welding speed and parameters
- Pneumatic clamping system, quick positioning, firmly hold thin plate and minimize deformation
- Precision linear guide rail guarantees smooth and stable torch movement
- Copper backing structure, good heat conduction for consistent and nice weld seam
- Optional TIG / MIG welding source, fits carbon steel, stainless steel and alloy sheet
- Compact frame, simple operation and low maintenance cost
| Item | Parameter |
|---|---|
| Model | ZF-1000 |
| Effective Welding Length | 1000mm |
| Workpiece Thickness | 0.5–6mm |
| Welding Mode | TIG / MIG Optional |
| Control System | PLC + Touch Screen |
| Clamping | Pneumatic clamping |
| Guide Rail | Precision linear guide rail |
| Power Supply | 380V 3Ph 50Hz (Customizable) |
| Certification | CE |
| Application | Cylinder longitudinal straight seam welding |
- Stainless steel cylinder shell longitudinal seam welding
- Small storage tank and pressure vessel straight seam fabrication
- Metal barrel & tank can body welding
- Heat exchanger thin-wall shell seam welding
- Large pipe segment longitudinal seam welding
- Industrial metal chamber and housing sheet assembly
- Water treatment & food grade stainless steel vessel manufacturing
- Main machine wrapped with plastic film; control cabinet packed in solid plywood case
- Loading port: Shanghai / Wuxi
- Trade terms: EXW, FOB, CIF acceptable
Lemar Machinery is a professional manufacturer of welding automation machines. Our product range covers longitudinal seam welders, welding rotators, welding positioners, 3D welding tables and welding manipulators. We supply CE certified welding equipment for global metal fabrication workshops. Custom design available for special workpiece demands.
A: Effective welding length is 1000mm.
A: Carbon steel, stainless steel and alloy thin sheet.
A: Yes, both welding sources are optional.
A: Custom fixtures are available based on your workpiece drawings.
A: Standard machine lead time: 20–30 working days.
A: 12 months warranty, lifetime online technical support.
