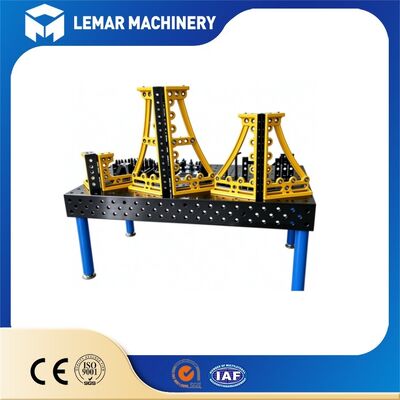

Professional D28 Welding Table with Modular Fixturing System

Our Professional D28 Welding Table with Modular Fixturing System is a scalable heavy-duty fixturing solution for modern weld shops. Featuring a Φ28mm precision hole grid, stress-relieved and optional nitrided tabletop, it maintains stable flatness under heavy use. Interchangeable modular clamps, locators and supports allow rapid reconfiguration for diverse workpieces. Select 2D or 3D configurations, or connect multiple tables for large assemblies. Ideal for structural welding, metal fabrication and robotic welding applications.

• Static Load: Under static, evenly distributed load conditions, each individual leg can support 700–1000 kg; the entire unit can support 3–10 tons, depending on the tabletop dimensions, thickness, and the structure of the support frame.
• Dynamic / Impact Load: Significantly lower than the static load capacity. Do not subject the tabletop to impacts or hammering from heavy objects, as this will compromise its flatness and the precision of the holes.
• Load-Bearing Prerequisites: The floor must be level, and the support legs must be properly adjusted and leveled. If the floor is soft or uneven, heavy loads may cause the tabletop to deform.

1. Packaging: Export-grade wooden crates with protection for mounting holes; for large units, the tabletop and support frame are packed separately.
2. Transport Risks: Use only designated lifting eyes for hoisting; do not lift by the edges of the tabletop, as this may cause deformation.
3. On-site Installation: Place on a solid, level surface and adjust the leveling feet. For high-precision robotic workstations, reinforcement of the concrete floor is recommended. A final on-site flatness verification can be provided upon completion of the installation.

1. Interchangeable: Features a D28 standard hole pattern, ensuring global compatibility with modular fixturing systems from major European and American brands.
2. High Repeatability: Offers a hole-position accuracy of ±0.03mm, guaranteeing consistent dimensions across every production batch.
3. High Wear Resistance: The nitrided surface resists weld spatter adhesion, providing a significantly longer service life compared to standard steel plate tables.
4. Flexible & Time-Saving: Reduces tooling changeover time from days to mere minutes, minimizing production downtime.
5. Expandable: Supports modular connection of multiple tables for virtually unlimited expansion, accommodating large-scale steel structural workpieces.
6. Compatible with Robotic Welding: Provides a stable reference base, perfectly suited for robotic welding cells and automated production lines.

We provide complete after-sales support for our Professional D28 Welding Table with Modular Fixturing System to protect your investment and guarantee stable workshop operation.

• 12 Months Warranty: Covers manufacturing defects of the D28 welding table. Excludes damage from misuse, impact, overload and normal wear of modular fixtures.
• Lifetime Free Technical Support: Guidance for installation, levelling, fixturing layout and maintenance.
• Ready Spare Parts: Fast supply of D28 standard accessories at factory price.
• Document Support: Material certificates, stress-relief reports and flatness measurement documents available.
• Remote Troubleshooting: Quick support via video call, email or WhatsApp.
