D16 Welding Table Modular System for Industrial Fabrication
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D16 modular welding table
,industrial fabrication welding table
,3D welding table system
The D16 Welding Table Modular System for Industrial Fabrication is your flexible precision fixturing solution for industrial metal fabrication. With a dense 50×50mm Φ16 H7 hole grid and a 2D or full 3D five-sided perforated structure, our modular welding table lets you build and reset workholding fixtures in minutes. Ideal for precision welding, assembly, inspection, and robotic welding. Reduce custom jig investment and boost workshop productivity.
| Item | Specifications |
|---|---|
| Hole System | Φ16 mm H7 precision holes |
| Grid Pitch | 50 mm × 50 mm |
| Flatness | Standard: ≤0.1 mm / 1000mm; Grade 0: ≤0.05 mm / 1000mm |
| Hole Pitch Tolerance | ±0.05 mm |
| Surface Option | Plain painted / Nitriding (HV550-900, 0.25-0.5mm layer) |
| Material Options | Q355 Steel / HT300 Cast Iron |
| Custom Service | Custom length/width, thickness, laser scale, 2D or 3D structure available |

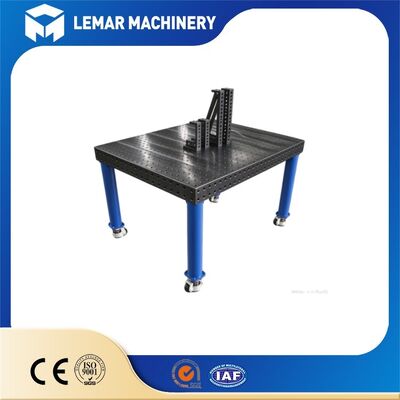

- Base Unit: D16 Welding Table The 3D welding table features a grid of D16 holes on all five sides. It is reinforced with bottom stiffeners and equipped with adjustable support legs. Multiple tables can be joined together to expand the working area.
- Positioning and Support Modules L-shaped squares, U-shaped blocks, V-blocks, angle positioning blocks, support spacers, and extension connecting blocks.
- Locking and Clamping Components D16 quick-locking pins, countersunk pins, quick-action clamps, various fixtures, and clamping bolts. These components insert directly into the grid holes, allowing for rapid workpiece clamping without the need for custom-drilled welding jigs.
- Auxiliary Accessories Reference straight edges, height gauges, magnetic bases, tool carts, protective cover plates, etc.
- High precision and repeatable positioning: Ideal for welded components with strict dimensional tolerances; well-suited for robotic automated welding.
- Flexible and modular: Perfect for high-mix, low-volume production; eliminates the need for costly custom-built fixtures and shortens prototyping lead times.
- D16 grid system (50mm spacing): Offers a finer grid than the D28 system (100mm spacing), making it better suited for small-to-medium precision weldments and thin-walled sheet metal; utilizes smaller fixtures and provides a higher density of positioning points.
- Wear-resistant and anti-spatter: Features a nitrided, hardened surface that resists weld spatter adhesion and ensures a long service life.
- Expandable through modular connection: Multiple tables can be joined to accommodate larger workpieces or support multi-station collaborative operations.
- Versatile, multi-purpose platform: Serves as an integrated workstation for welding, assembly, dimensional inspection, marking/layout, and grinding.
- Small to medium-sized weldments, thin-walled sheet metal, aluminum components, and precision frames.
- Applications requiring numerous positioning points and a fine-pitch grid pattern.
- Motorcycle frames, small components for construction machinery, robotic welding, and inspection/assembly fixtures.
- Scenarios involving high product variety, frequent production changes, and small-batch trial production.
- Heavy steel structures, large-scale frames, and thick, heavy plates.
- Applications requiring high clamping forces or heavy-duty, high-tonnage tooling.
- Extra-large workpieces that demand higher shear resistance from the locking pins.
A: Yes. We support custom length, width, table thickness, laser engraved metric or imperial scales, and special modifications according to your workshop layout.
A: Both options are available. You can buy only the tabletop, or a full modular package including locking pins, locating blocks, angle brackets and clamps.
A: We can offer material certificates, flatness inspection reports, CE and ISO9001 certificates upon request.
A: Standard sizes normally take 2-4 weeks. Custom tables or nitriding treatment require extra production time. Please contact us for an exact schedule.
Our D16 Welding Table Modular System for Industrial Fabrication delivers stable accuracy and flexible fixturing for all kinds of industrial fabrication projects.
Share your workshop demands, workpiece specifications and quantity needs with us. We will provide professional technical advice and a detailed quotation quickly. Contact us now for inquiry!
