D28 Modular Welding Table for Precise Metal Welding Tasks
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 Modular Welding Table
,Precise Metal Welding Table
,3D Welding Table

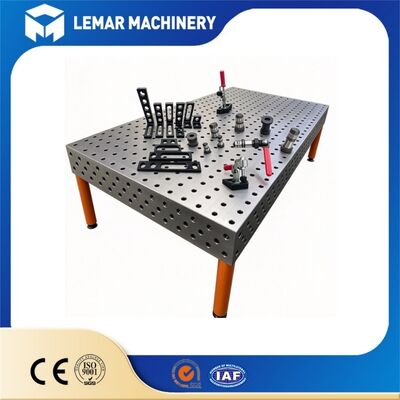

The D28 Modular Welding Table is engineered to deliver consistent high precision for intricate metal welding and assembly tasks. Built around the standard D28 hole grid, this modular workbench removes repeated marking and layout work for complex metal assemblies. CNC machined hole positions guarantee repeatable alignment for small to medium precision metal components.
The rigid reinforced frame absorbs thermal distortion generated during welding, preserving the table's flatness even after long hours of continuous fine welding work. Fabricators can rapidly reconfigure clamps, stops and positioning pins on the five-sided perforated structure, greatly cutting jig preparation time while maintaining tight tolerances for finished welded parts.
| Model | D28 Modular Welding Table |
|---|---|
| Tabletop Material | HT300 Cast Iron / Q355 Steel (optional) |
| Surface Treatment | Nitriding (anti-spatter) |
| Tabletop Thickness | 28 mm |
| Hole Diameter | D28 (28 mm) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Surface Flatness | ≤ 0.1 mm / m |
| Surface Hardness | HRC 58–62 (nitrided layer) |
| Load Capacity | 5,000 kg / 11,000 lbs |
| Standard Sizes | 1000×1000, 1500×1000, 2000×1000, 2000×1500, 3000×1500 mm (custom sizes available) |
| Leg Height | 800–900 mm (adjustable) |
| Net Weight | 250–850 kg (depends on size) |
- Strictly calibrated D28 hole grid enables fast fixture repositioning. Operators can reset clamping points for different precision workpieces without secondary machining.
- Reinforced ribbed frame design effectively suppresses thermal deformation. It maintains stable flatness during precision welding and avoids dimensional deviation of finished parts.
- Nitrided tabletop surface provides excellent wear resistance. Weld spatter can be cleared easily and will not leave permanent indentations that affect positioning accuracy.
- Five-sided machined surfaces support multi-angle clamping. Complex parts can be secured from top, side and vertical planes to complete multi-facet precision welding.
- Compatible with all standard D28 series accessories. Quick locking pins, quick release clamps and positioning blocks can be mounted directly for flexible fixturing.
- Adjustable leveling feet allow fine tuning of table horizontal status. It ensures reliable positioning accuracy even when placed on slightly uneven workshop floors.
This D28 modular welding table is ideal for high precision metal welding tasks across multiple industries. It is widely used for mechanical bracket welding, equipment frame assembly, stainless steel component fabrication and small batch precision part production. It also serves well for prototype development, fixture test assembly and dimensional inspection of welded assemblies. Manufacturers working on custom metal components and low volume precision projects can benefit greatly from its reliable positioning performance.
It is specially designed for precision metal welding tasks, suitable for stainless steel frames, mechanical brackets and custom metal components that demand tight dimensional tolerance.
Yes. All holes on the top surface and four side panels follow standard D28 specifications, which support direct installation of our full range of D28 fixturing accessories.
Nitriding forms a hard protective layer on the steel surface. It reduces weld spatter adhesion and resists scratches, protecting the accuracy of positioning holes for long-term repeated use.
Absolutely. Its stable structure and precise hole grid help hold stainless steel workpieces securely and reduce thermal warping during welding operations.
Custom dimensions are supported. Share your target workpiece size and workshop space with our team to get tailored recommendations.
Each table undergoes flatness check and hole position tolerance testing. We can provide inspection reports for your reference upon request.
If you are searching for a reliable modular welding platform to handle your precise metal welding tasks, please send your inquiry now. Our technical team can share detailed drawings and matching accessory recommendations to fit your workpiece requirements. Reach out to us to get your personalized quotation and upgrade your workshop precision welding workflow.
