D28 Welding Table System with 28mm Holes for Welding Shops
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,T/T,D/P |
| Supply Capacity: | 500 units/month |
D28 Welding Table System
,28mm Hole Welding Table
,Welding Fixture Table for Shops

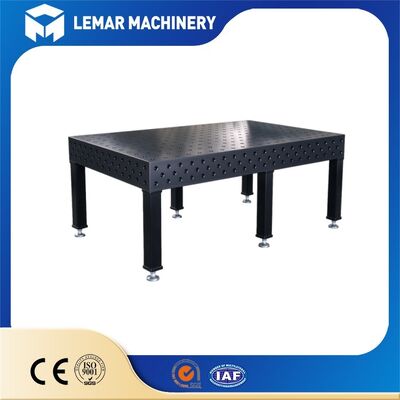

The D28 Welding Table System With 28mm Holes delivers modular precision fixturing for welding shops and metal fabricators. Built on a 100mm grid with Φ28mm H7 holes, this 3D welding jig table supports flexible multi-angle clamping for heavy steel, tube and frame workpieces. Choose Q355 steel or HT300 cast iron tabletop with nitrided hard coating to resist weld spatter and wear. All D28 clamps, stops and locating pins are fully interchangeable. Ideal for small batch fabrication, sample prototyping and automated robotic welding stations. Tables can be joined together to create large custom working areas.
| Table Size (L × W) | 2D Single Side | 3D Five-Sided | Table Thickness | Standard Static Uniform Load |
|---|---|---|---|---|
| 1000 × 800 | Available | Available | 25mm | 3 Ton |
| 1200 × 800 | Available | Available | 25mm | 3 Ton |
| 1500 × 1000 | Available | Available | 25mm | 4 Ton |
| 2000 × 1000 | Available | Available | 25mm | 5 Ton |
| 2000 × 1200 | Available | Available | 25mm | 5 Ton |
| 2400 × 1200 | Available | Available | 25mm | 6 Ton |
| 3000 × 1500 | Available | Available | 25mm | 8 Ton |
| 4000 × 2000 | Available | Available | 25mm | 10 Ton |
- Flexible and Versatile: A single welding table and accessory set handle the welding of dozens of product types, significantly reducing costs associated with custom fixtures and storage.
- High Precision: Manufactured via integral CNC machining and stress-relieving artificial aging; resistant to deformation during long-term use, ensuring consistent dimensions for finished welded products.
- Durable and Spatter-Resistant: Nitrided versions feature high surface hardness, preventing weld spatter from adhering to the table surface and making cleanup easy.
- Modular Expandability: Multiple platforms can be joined using locating pins to create extra-large welding work surfaces.
- Global Standard Compatibility: Compatible with accessories from international D28 systems (such as Demmeler and Siegmund), ensuring high customer acceptance.
- Rated load per support leg: 700–1,000 kg
- Static uniform load capacity of the entire welding table: Standard 3 tons; up to 10 tons with reinforced box-section structure
Important Notice:
The specified values apply to uniform, static loads distributed across the surface. Concentrated point loads or impact loads (such as forging or heavy hammering) will significantly reduce load-bearing capacity and may cause surface indentation or deformation; such damage is not covered by the warranty.
Not suitable for stamping or heavy hammering operations; intended solely for assembly, welding, and inspection tooling applications.
- Packaging: Fumigated wooden crates with solid wood surfaces; protective film applied to tabletops; accessories packed in separate small wooden crates.
- Transport: Large items shipped via sea or land; extra-long tabletops packaged in sections for on-site assembly.
- On-site Installation: Place on a level concrete floor and adjust leveling feet; join multiple sections using D28 locating pins to ensure overall precision after assembly.
- Optional Delivery Documentation: Packing list, factory dimensional inspection report, and material certificate.
A: Yes. Our D28 system follows the same 100mm grid and Φ28 H7 hole standard; all standard clamps and locating pins are interchangeable with the Siegmund D28 series.
A: Yes. Tables can be precisely joined with D28 connecting pins and joint plates to build a large working area.
A: Nitriding creates a hard wear-resistant layer that is anti-spatter. Shot blasting only removes scale for basic anti-rust protection without anti-weld-spatter performance.
A: Yes. High precision grade D28 3D welding tables are widely used for robotic welding; consistent flatness ensures stable welding quality.
A: Standard warranty against manufacturing defects. Not covering damage from overload, heavy hammering, flame burning or improper operation.
If you have any questions about our D28 Welding Table System With 28mm Holes For Welding Shops, feel free to contact us.
Share your working size, load demand and accessory needs, we will reply with a competitive offer quickly.
