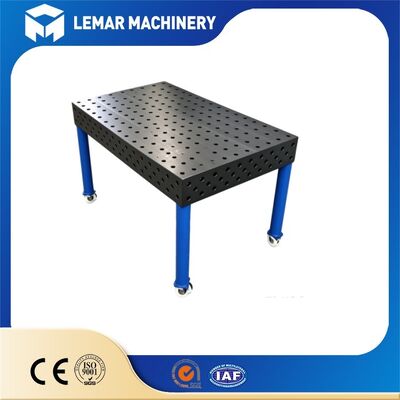

Industrial D28 Welding Table with Reinforced Frame and Legs
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
Industrial D28 Welding Table
,Reinforced Frame Welding Table
,3D Welding Table with Legs
Cut custom fixture costs and slash workpiece setup time with our Industrial D28 Welding Table with Reinforced Frame and Legs. This heavy-duty 3D flexible welding station eliminates the need for dedicated one-off jigs, letting your team reconfigure clamps and supports quickly for new production batches. Its upgraded reinforced underframe and heavy-duty legs deliver outstanding structural stability even under large, heavy workpieces. Thanks to the five-sided D28 hole system, parts can be secured and positioned in three dimensions. Available in multiple sizes with customizable working heights and surface finishes, this welding table is a long-term investment for metal fabrication shops handling structural frames, chassis and robotic welding projects.
| Item | Details |
|---|---|
| Hole System | D28, Φ28mm H7, 100×100mm grid |
| Tabletop Material | HT300 Cast Iron / Q355 Alloy Steel (Nitriding Optional) |
| Tabletop Thickness | 25mm |
| Flatness | ≤0.1mm/1000mm (Precision Grade 0: ≤0.05mm/1000mm) |
| Structure | 5-sided machined tabletop + bottom reinforcing ribs + reinforced box underframe + heavy-duty legs |
| Load Capacity | Reinforced frame version: 3–10 tons (Depends on dimension) |
| Standard Table Sizes | 1000×800, 1200×1000, 1500×1000, 2000×1000, 2400×1200, 3000×2000, 4000×2000mm |
| Working Height | 800–900mm (Customizable) |
The D28 welding table features a standardized, modular system: the table surface and four sides are equipped with standard 28mm holes, allowing for the rapid mounting of tooling—such as locking pins, positioning angles, clamps, support blocks, and V-blocks—without the need for custom-made fixtures.
Workpieces can be positioned, clamped, and assembled in 3D space (X, Y, and Z axes); a single table setup handles the welding of workpieces with diverse structural designs, significantly reducing tooling preparation time and making it ideal for high-mix, low-volume production.
All accessories are compatible with the universal D28 100×100 hole pattern and can be purchased separately:
- Positioning: D28 locking pins (quick-release/threaded), locating pins, positioning squares, right-angle positioning blocks, V-blocks (for round tubes), extended support posts, adjustable support pads
- Clamping: Quick-action clamps, screw clamps, horizontal/vertical clamps, bow-type clamping modules
- Extension: Extension plates, connecting pins (for joining multiple tables), angle adjusters, rotating fixture bases
A: No. Tabletop, reinforced frame and legs are shipped disassembled on fumigated pallets to save container space and avoid transport damage. Simple bolt assembly on site.
A: Yes. The D28 system allows multiple tables to be connected via positioning pins to form an extra-large working area.
A: Nitrided surface forms a hard layer of HV550–900, providing anti-spatter properties, easy cleaning and long service life. Non-nitrided steel is lower cost, recommended for light to medium welding workload.
A: Yes. We can record flatness and hole tolerance data and issue an inspection certificate upon request.
A: Sure. We offer basic and full kits of D28 clamps, locating pins and angle blocks as optional packages.
Our Industrial D28 Welding Table with Reinforced Frame and Legs supports custom dimensions, surface treatments and full fixture packages.
Share your workpiece requirements and workspace layout, and we will offer a tailored quotation for your fabrication or robotic welding project.
