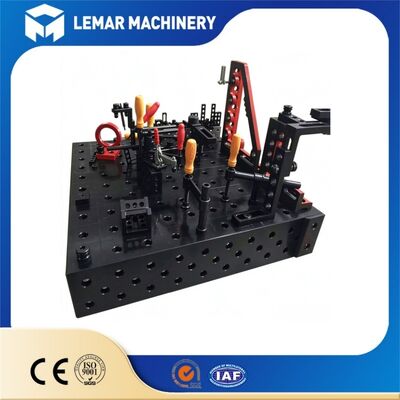

Welding Table D28 For Modular Fixture Metal Welding Assembly
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 Welding Table Modular Fixture
,3D Welding Table Metal Assembly
,Modular Welding Table D28
Our D28 welding table is purpose-built for flexible modular fixturing during metal welding and assembly processes. The evenly spaced D28 hole grid creates a reliable reference plane, letting operators mount, shift, and rearrange fixtures rapidly for different workpieces. Robust steel construction resists deflection under clamping pressure and welding thermal load. This workbench eliminates tedious marking steps and simplifies repeated positioning work. It is an ideal foundation for building customized fixture setups, helping workshops boost consistency and reduce rework on welded assemblies.
| Parameter | Specification |
|---|---|
| Model | Welding Table D28 |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
- Uniform D28 hole matrix supports flexible fixture layout to handle multi-sided and irregular workpieces for welding assembly.
- Nitrided tabletop improves surface hardness to minimize welding spatter adhesion and resist mechanical scratches.
- High-rigidity steel plate lessens bending and thermal deformation caused by welding heat and strong clamping force.
- Detachable adjustable support legs enable quick leveling on uneven workshop floors to secure a horizontal benchmark surface.
- Standardized side profiles allow multiple tables to be joined together to create extended work areas for large assemblies.
- Interchangeable fixture interface lowers tooling investment since a single set of clamps and brackets can serve multiple projects.
- Heavy machinery component welding in large manufacturing factories
- Large frame fabrication for trailer and truck accessory production
- Structural steel welding for engineering and construction workshops
- Batch production of heavy-duty metal equipment parts
- Multi-specimen trial welding for industrial research and development teams
- Metal repair and custom fabrication for heavy-industry service workshops
Q1: Can I expand this D28 table by adding extra table modules later?
A1: Yes. Its modular expandable design supports connection of additional modules to enlarge your working platform as business grows.
Q2: Does this table fit D28 clamps purchased from other overseas brands?
A2: Absolutely. It follows international D28 hole standards and works with most mainstream D28 fixture accessories from global suppliers.
Q3: Is custom table size acceptable for special workshop space requirements?
A3: Custom dimensions are available. Send your required length, width, and height to our sales team for technical review and quotation.
Q4: How do you pack the table for long-distance sea export shipment?
A4: The welding table will be fixed inside heavy-duty export wooden crates with protective filler to prevent collision damage during ocean transit.
Q5: What payment options are available for bulk orders of this D28 welding table?
A5: We support FOB trade terms. Deposit plus balance before shipment is available for bulk orders. Other solutions can be discussed based on order volume.
Q6: Will you share production progress after order confirmation?
A6: Our sales team will update production status regularly. Finished product photos and packing information will be sent before shipment arrangement.
Send your workpiece drawings and production requirements to our engineering team. We will provide professional suggestions on table dimensions and matching modular fixture combinations for your metal welding assembly work. Get your personalized quotation now.
