Welding Table D28 For Accurate Metal Workshop Fabrication Jobs
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table for metal fabrication
,3D welding table for workshop jobs
,accurate welding table D28

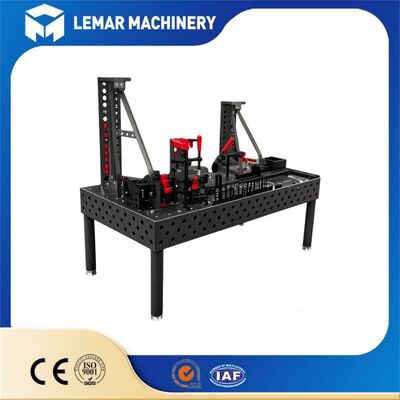

The D28 welding table is a modular hole-system workbench built for precise metal fabrication in workshop environments. Equipped with standard D28 fixture holes across the entire tabletop, it supports fast clamping and flexible positioning of metal workpieces. The rigid table body maintains stable flatness under heavy load, reducing assembly errors during welding and prefabrication. It works seamlessly with a wide range of matching clamps, angle brackets, and positioning blocks, helping fabricators cut setup time and improve welding repeatability across different metal components.
| Parameter | Specification |
|---|---|
| Grid System | D28 – 28mm holes on 100mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 gray cast iron / Q355 steel |
| Tabletop Thickness | 100mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500mm |
| Leg Height | 850mm (custom heights available) |
| Leg Construction | 80×80mm square tube, 5mm wall |
| Leveling Feet | M24 threaded, 50mm pad |
| System | Material | Size (mm) | Weight (kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron / Q355 steel | 1000×1000×200/150 | 300 |
| D28/D16 | HT300 cast iron / Q355 steel | 1000×2000×200/150 | 520 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200×1200×200/150 | 400 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200×2400×200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×1000×200/150 | 420 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×1500×200/150 | 600 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×2000×200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×3000×200/150 | 1150 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000×3000×200/150 | 1500 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000×4000×200/150 | 2100 |
- Dual-scenario compatible design works perfectly for manual welding stations and robotic welding production lines, enabling flexible production arrangements.
- Reinforced integral structure delivers strong load capacity and outstanding anti-deformation performance, maintaining stable shape under long-term continuous welding work.
- Plasma nitrided tabletop resists high-temperature spatter, friction, and oxidation. It reduces daily wear, lowers maintenance frequency, and extends service life.
- Strictly controlled flatness provides reliable repeat positioning accuracy, effectively cutting welding dimensional deviation and improving finished product qualification rate.
- Universal D28 modular hole system supports quick fixture rearrangement. It saves costs on customized jigs and greatly shortens workpiece setup time.
- Customizable dimensions and auxiliary configurations are available. We can adjust platform specifications to match different workshop layouts and production demands.
This D28 flexible 3D welding position table is widely applied in multiple industrial scenarios. It fits metal structure welding workshops, mechanical equipment assembling, auto parts processing, engineering machinery fabrication, hardware product manufacturing, and custom fixture building. It works well for batch production and small-batch prototype welding tasks, serving factories, processing workshops, and engineering production sites.
- Mechanical structural component welding: Fixture assembly for heavy machinery frames, brackets, and base parts.
- Automotive metal fabrication: Welding and positioning of vehicle chassis, structural supports, and body assemblies.
- Pipeline and cylindrical part processing: Precise locating for pipes, flanges, and circular pressure component welding.
- Frame and cabinet manufacturing: Assembly of equipment frames, metal housings, and rectangular structural frameworks.
- Special-shaped workpiece production: Multi-angle positioning for irregular, radial, and multi-directional metal components.
- Automated robotic welding lines: Stable tooling platform matched with robot systems for continuous batch production.
- Custom metal prototype fabrication: Fast reconfigurable tooling for trial production and small-batch customized projects.
The D28 refers to the 28-millimeter diameter of the holes on the tabletop. These holes are arranged in a 100mm grid pattern and are compatible with all D28 series clamping fixtures and accessories, providing a standardized fixturing system.
Nitriding is a heat treatment process that increases surface hardness to approximately HV 700. This makes the table highly resistant to wear, scratches, and welding spatter buildup. The nitrided surface also offers better corrosion resistance and is easier to clean compared to untreated steel surfaces.
Yes, we offer multiple standard sizes and also accept custom dimension requests. Common standard sizes include 1000×1000mm, 1500×1000mm, 2000×1000mm, 2400×1200mm, and 3000×1500mm. For larger projects, multiple tables can be joined together seamlessly.
The D28 system is compatible with a comprehensive range of accessories including ball-lock clamps, positioning stops, angle brackets, V-blocks, clamping bolts, U-profiles, support legs, and casters. All accessories are designed to fit the 28mm hole system and 100mm grid spacing.
The load capacity depends on the specific model and tabletop thickness, but standard D28 tables can support up to 5,000 kilograms when the load is evenly distributed across the table surface. Heavy-duty models with thicker tabletops and additional support beams are available for even greater load requirements.
The nitrided surface is relatively low maintenance. Welding spatter can be easily removed with a scraper or wire brush without damaging the surface. For regular cleaning, simply wipe the table with a clean cloth. We recommend applying a light coat of anti-rust oil if the table will be stored unused for extended periods in humid environments.
Send your workpiece size and fabrication requirements to our team. We will recommend proper table dimensions and matching accessories for your workshop projects. Get your customized quotation and technical support now.
