Automatic Welding Turning Rolls for Tank & Vessel Circumferential Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 74.00cm * 100.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,T/T,D/P,L/C |
| Supply Capacity: | 500 units/month |
Automatic Welding Turning Rolls
,Tank Circumferential Welding Rotator
,Vessel Welding Turning Rolls

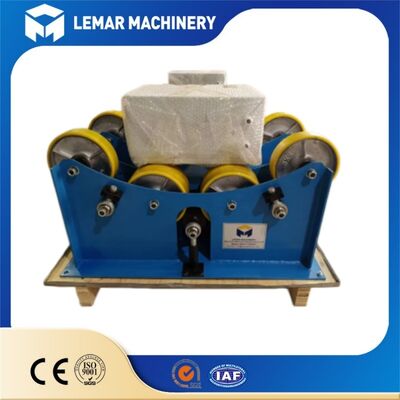

The 3-ton self-aligning welding rotator is a widely used auxiliary welding machine designed for both outer and inner circumferential welding of cylindrical workpieces. Unlike ordinary adjustable rotators, its self-aligning structure allows the roller groups to automatically change angles to fit various pipe and tank diameters. Operators simply place the cylinder on the rollers without manually adjusting roller spacing. The machine keeps the workpiece centered and stable during rotation, preventing shifting. It reduces labor, stabilizes rotation speed, and improves welding quality. It is ideal for medium-sized tanks, pipes, heat exchangers, and pressure vessel fabrication.
Our 3-ton self-aligning welding rotators have been exported to many overseas countries. Customers use this machine for medium tank and pipe welding. The equipment runs steadily in fabrication workshops and is user-friendly for operators. We can provide on-site photos for reference upon request.
| Item | Specification |
|---|---|
| Model | 3 Ton Self-Aligning Welding Rotator |
| Max Load Capacity | 3000 kg (3 ton) |
| Workpiece Diameter | 200 mm – 1600 mm |
| Rotation Speed | 0.1–1 m/min, VFD stepless speed regulation |
| Roller Material | High wear-resistant rubber roller |
| Drive Form | Active roller set + Passive roller set |
| Power Supply | 380V/50Hz, customizable 220V, 415V |
| Control Unit | Control box, start/stop, speed adjust, emergency stop |
| Optional Parts | Standard welding torch holder, pneumatic welding torch holder (USD 125/set), foot pedal switch |
| Brand | Lemar |
| Place of Origin | Wuxi, China |
| MOQ | 1 Set |
| Package | Export fumigated wooden case |
| Warranty | 12 months |
- Automatic Self-Centering Design — Rollers automatically adjust angles to fit cylinder diameter, keeping the workpiece centered and saving setup time.
- VFD Stepless Speed Regulation — Frequency inverter control ensures smooth low-speed running. Speed is adjustable from 0.1 to 1 m/min to match different welding processes.
- Heavy-Duty Rubber Rollers — Thickened high-friction rubber rollers reduce running noise and protect carbon steel and stainless steel surfaces from scratches.
- Stress-Relieved Welded Base — Robust integral steel base provides strong rigidity for stable, continuous long-time operation.
- Complete Safety Protection — Emergency stop button and overload protection automatically stop the machine under abnormal load to ensure workshop safety.
- Easy Maintenance — Simple mechanical structure allows convenient lubrication and routine inspection, resulting in low maintenance cost.
- Optional Accessories — Standard welding torch holder, pneumatic welding torch holder (USD 125 per set), and foot pedal switch for hands-free operation.
- Medium carbon steel & stainless steel pipe circumferential welding
- Water tank, storage tank, and pressure vessel fabrication
- Heat exchanger cylinder and barrel welding
- Cylindrical workpiece assembly, fit-up, and polishing rotation
- Machinery manufacturing, environmental protection, and petrochemical workshops
- Packing: Standard fumigated export wooden case, fixed firmly inside to avoid shaking during sea or air transportation.
- Trade terms: EXW, FOB, CIF, DAP are all acceptable.
- Loading Port: Shanghai / Ningbo port.
A1: The rollers can swing automatically to center cylindrical workpieces. No manual adjustment is needed for different diameters within the working range.
A2: Yes. We supply both standard and pneumatic torch holders. The pneumatic type costs USD 125 per set.
A3: Yes, we can customize 220V, 380V, or 415V to match your local power grid.
A4: 12 months warranty for manufacturing defects. Damage caused by overload or incorrect operation is not covered.
A5: Some units are in stock, and fast shipment is available.
