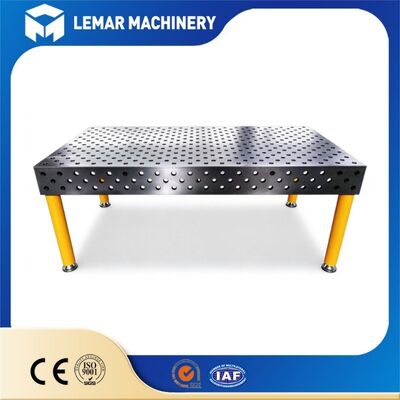

Accurate Welding Table D28 for Prefab Metal Component Builds
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table for prefab
,3D welding table metal builds
,Accurate welding table D28
Our Accurate Welding Table D28 is engineered specifically for prefab metal component fabrication. Built with a rigid steel substrate and a precision D28 hole grid system, this 3D flexible welding platform delivers reliable flatness stability during repeated clamping, positioning, and welding operations.
It eliminates tedious marking and repeated fixture making for metal prefabrication workshops. The modular hole layout supports quick assembly of clamps, stops, and supports, greatly cutting down setup time for batch metal component production. It is a solid core workstation for manufacturers focusing on prefabricated metal parts.
| Parameter | Specification |
|---|---|
| Grid System | D28 – 28mm holes on 100mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 gray cast iron / Q355 steel |
| Tabletop Thickness | 100mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500*1000, 2000*1000, 3000*1500mm |
| Leg Height | 850mm (custom heights available) |
| Leg Construction | 80*80mm square tube, 5mm wall |
| Leveling Feet | M24 threaded, 50mm pad |
| System | Material | Size (mm) | Weight (kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron / Q355 steel | 1000*1000*200/150 | 300 |
| D28/D16 | HT300 cast iron / Q355 steel | 1000*2000*200/150 | 520 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200*1200*200/150 | 400 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200*2400*200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500*1000*200/150 | 420 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500*1500*200/150 | 600 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500*2000*200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000*4000*200/150 | 2100 |
- Precision D28 Hole Grid for Repeatable Positioning
The standardized D28 hole matrix ensures consistent locating accuracy for prefab metal components. Each positioning point maintains high repeatability so identical metal workpieces can be produced in batches without re-calibration. - Plasma Nitrided Surface for Outstanding Wear Resistance
The nitrided tabletop surface achieves high hardness to resist scratch, weld spatter, and abrasion. It keeps surface precision stable after years of heavy daily welding use. - High Flatness Performance for Prefabricated Metal Work
Strict flatness control at 0.1mm/m prevents workpiece deformation during welding. It guarantees dimensional consistency of finished prefab metal components for assembly. - Modular Fixture Compatibility Reduces Tooling Cost
The universal D28 hole system works with a full series of standard clamping accessories. Workshops no longer need to build dedicated single-use jigs for each new metal component. - Heavy Load Bearing for Large Prefab Metal Parts
The reinforced table structure supports up to 3000kg evenly distributed load. It safely holds bulky and heavy prefab metal frames and assemblies during welding. - Adjustable Reinforced Legs for Level Setup on Uneven Floors
Equipped with heavy duty adjustable support legs, operators can quickly level the whole table on imperfect factory ground to preserve machining precision.
This D28 welding table fits perfectly for workshops that manufacture prefab metal components. Common usage includes prefabricated metal frames, structural metal parts, machinery base frames, transport metal brackets, and modular building metal assemblies. It serves steel fabrication factories, metal prefabrication plants, and custom metal component workshops.
Standard lead time is 15–30 working days. Tables are packed in heavy wooden crates with anti-rust oil, VCI paper, and foam padding. Sea, air, and courier shipping options are available with full customs documentation.
D28 uses 28mm holes with a 100*100mm grid. It is designed for heavy-duty welding — higher load capacity (5 tons/m²) and better rigidity for thick plates and large workpieces.
Yes. Custom table sizes, hole layouts, and surface treatments are available. Send your drawings or specs, and our engineering team will design accordingly.
A full range of D28-standard accessories: clamps, V-blocks, supports, locating pins, angle plates, and adjustable brackets. All are interchangeable with no special tools required.
Stress-relieved ductile iron with HB 180–220 hardness. Keep the surface clean and avoid local overloading. Re-machining service is available to restore precision if needed.
Standard lead time: 15–30 working days. Packed in heavy wooden crates with anti-rust oil, VCI paper, and foam padding. Sea/air/courier shipping with full customs documentation.
Yes — remote video guidance, online technical support, and on-site service (on request). 12-month warranty and fast reordering based on purchase history.
