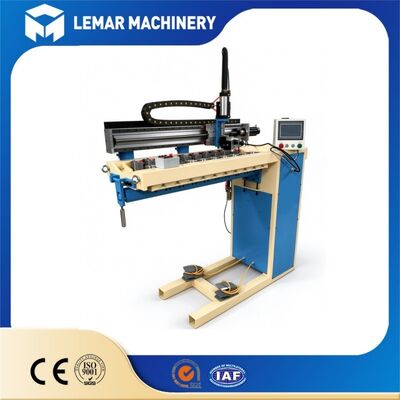

ZFH1000, TIG MIG Straight Seam Welder for Stainless Steel Cylinder Water Tank
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 74.00cm * 100.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Brief Introduction
ZFH1000 longitudinal seam welding machine is an automatic dedicated welding equipment for straight butt seam of cylinder and sheet metal. The effective welding length reaches 1000mm. It adopts PLC + touch screen control, pneumatic clamping and servo driving system. Support TIG, MIG, MAG welding process. Widely used for stainless steel, carbon steel, galvanized sheet and aluminum alloy cylinder, water tank, air duct and barrel production. Weld seam is smooth, low deformation, stable and continuous running for mass production. CE certified, we support custom modification according to workpiece dimension.
Main Technical Parameters
表格
| Item | Specification |
|---|---|
| Model | ZFH1000 |
| Effective Welding Length | 1000 mm |
| Welding Thickness | 0.3–3 mm |
| Min / Max Cylinder Diameter | 100 mm / 1000 mm |
| Welding Speed | 100–1500 mm/min, stepless adjustable |
| Positioning Accuracy | ±0.2 mm |
| Control System | PLC + Touch Screen |
| Welding Process | TIG / MIG / MAG (optional) |
| Power Supply | 380V 50Hz / Customizable |
| Cooling System | Water cooling copper mandrel |
| Driving Type | Servo motor drive |
| Machine Weight | About 1300 kg |
Core Advantages
✅ High Precision Servo Travel: Stable movement, small error, consistent weld quality for batch production
✅ Water-cooled Copper Mandrel: Reduce workpiece thermal deformation, keep weld flat for thin plate welding
✅ Pneumatic Fast Clamping: Quick positioning, save clamping time, easy operation for workers
✅ PLC Intelligent Control: All welding parameters adjustable on touch screen, store multiple product recipes
✅ Multiple Welding Process Optional: Match TIG/MIG power source as customer’s demand
✅ Strong Structure & Long Service Life: Heavy-duty machine frame, suitable for 24h continuous production
✅ Custom Available: Adjust mandrel, clamping range, torch assembly for special workpieces
✅ CE Certification: Meet EU mechanical safety standard, convenient for Europe market import
Product Details
- Welding Torch Adjustment Mechanism: Torch can move vertically, horizontally and angle fine-tune, easy alignment on weld line.
- Water Cooling Backing Mandrel: Integrated water cooling structure, uniform gas protection, avoid oxidation on weld back side.
- Pneumatic Pressing Assembly: Even pressure distribution, workpiece fixed tightly, prevent displacement during welding.
- Touch Screen Operation Panel: Simple UI, save parameter files, one-key auto run / manual jog mode.
- Heavy-duty Bed Frame: Stress relief annealing treatment, not easy to deform after long time working.
Application Industries
- Stainless steel water tank, pressure vessel shell
- Air duct, ventilation pipe, barrel & cylinder parts
- Kitchen equipment, sanitary ware cylinder
- Solar energy, new energy metal shell
- Metal barrel, filter housing, round tube longitudinal seam
FAQ
Q1: What metal material can this 1000mm seam welder weld?
A: Stainless steel, carbon steel, galvanized sheet, aluminum alloy.
Q2: Can I choose TIG or MIG welding source?
A: Yes, both optional. TIG for thin plate beautiful seam; MIG for high efficiency thick sheet welding.
Q3: Can you customize the machine for my special cylinder size?
A: Yes, we accept customization of mandrel diameter, clamping stroke and torch system.
Q4: Do you have CE certificate?
A: Yes, CE document available for customs clearance.
Q5: How long is the production lead time?
A: Normally 25–35 working days after deposit.
