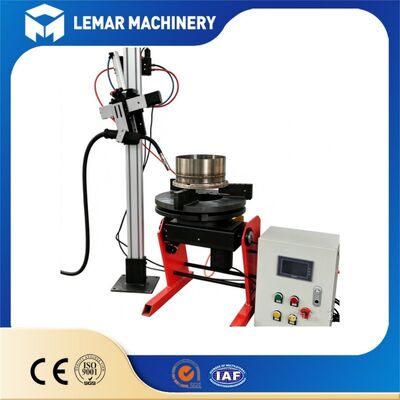

Small 100kg Welding Positioner Welding Rotary Table with 3-Jaw Chuck
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 65.00cm * 56.00cm * 64.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Overview
This 100kg welding positioner is a compact rotary welding turntable designed for small workpieces. The welding turning table can tilt from 0° to 90°, rotate smoothly with stepless speed regulation, widely used for pipe and flange girth welding. Our 100kg welding positioner helps operators finish circumferential welding easily, improve welding quality and workshop efficiency.
Product Attributes
| Attribute | Content |
|---|---|
| Product Name | 100kg Welding Positioner |
| Model | WP-100 |
| Rated Load | 100kg horizontal load |
| Rotation Speed | 0.5-5rpm stepless adjustable |
| Tilt Angle | 0°~90° |
| Table Diameter | 400mm |
| Center Hole | 65mm / 140mm optional |
| Control Mode | Foot pedal + control box |
| Drive Type | Motor driven |
| Application | Pipe, flange, small vessel circumferential welding |
| Optional Parts | 3-jaw chuck, torch holder |
| Voltage | 220V single phase |
| Certification | CE available |
| MOQ | 1 set |
Core Advantages
- Stable load capacity: rated 100kg horizontal load, solid steel frame structure for long service life.
- Stepless rotation speed 0.5-5rpm, adjustable rotation speed to match different welding processes.
- Flexible tilting function 0-90°, workpiece can be turned to ideal welding position.
- Equipped with foot pedal switch, convenient one-hand operation; optional 3-jaw chuck and torch holder.
- Compact size, easy installation and movement, ideal small welding positioner for small welding workshops.
Application
- Pipe circumferential welding
- Flange welding
- Small pressure vessel girth welding
- Hardware and metal parts rotary welding
Inspection & Factory Test
Every 100kg welding positioner will pass full inspection before shipment. We test rotation stability, tilting function, speed adjustment and electric system. Running test for 1 hour to ensure no abnormal vibration. Inspection report can be provided upon request.
FAQ
Q1: What is the max horizontal load of this welding positioner? A1: Rated horizontal load is 100kg. Please do not overload the welding turntable.
Q2: Can you supply 3-jaw chuck for this rotary welding table? A2: Yes, 3-jaw chuck is optional accessory for the 100kg welding positioner.
Q3: What voltage does this welding turning table support? A3: Standard 220V single phase. Custom voltage is available.
Q4: What is the tilt angle range of this positioner? A4: 0° to 90°, manual or electric tilting optional.
Q5: Can this welding positioner work with TIG / MIG welder? A5: Yes, it is compatible with TIG, MIG and MAG welding machines.
Q6: What is your warranty period? A6: 12 months warranty. We provide spare parts support within warranty time.
