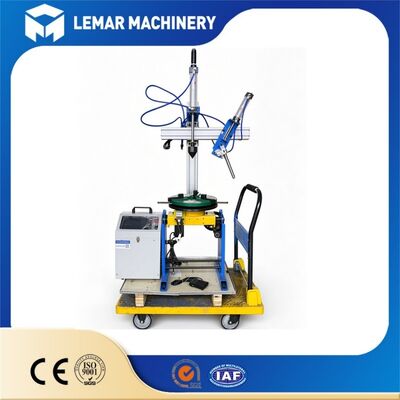

50kg Welding Positioner, Small Rotary Welding Turning Table
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 65.00cm * 56.00cm * 64.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-05
Document
Product Name:
50kg Welding Positioner
Rated Load:
50kg
Rotation:
0-360° Continuous Rotation
Tilt Angle:
0-90°
Rotation Speed:
0.1~2 Rpm Stepless Speed Regulation
Control:
Hand Controller + Foot Pedal
Table Diameter:
200mm
Voltage:
220V Single Phase
Application:
Small Metal Parts, Flange, Pipe Fitting Welding
Highlight:
50kg welding positioner table
,small rotary welding table
,welding turning table fixture
Product Description
50kg Welding Positioner, Small Rotary Welding Turning Table
Product Overview
The 50kg welding positioner is a compact and economical rotary worktable designed for welding small workpieces. It rotates components to optimal welding angles, helping operators achieve flat welding positions, reducing welding difficulty, and improving weld quality. This small positioner is widely used in workshops for pipe fittings, flanges, small pressure vessels, and metal parts. Equipped with optional chuck and tailstock, it's easy to operate and occupies minimal space.
Product Advantages
- Compact size, light weight, easy to move and install, saves workshop space
- Stepless adjustable rotation speed, stable running, low noise
- 0~90° tilting design, turns workpiece down to flat welding position
- Dual control by hand box and foot switch, free hands for welding operation
- Simple operation, low failure rate, suitable for small batch production
- Built-in welding ground terminal to protect motor from welding current damage
Applications
- Flange and pipe fitting welding
- Small pressure vessel welding
- Hardware metal parts fabrication
- Small cylinder workpiece welding
- Art metal craft welding
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Load | 50kg |
| Rotation Range | 0-360° continuous rotation |
| Rotation Speed | 0.1-2rpm, stepless speed regulation |
| Tilt Angle | 0-90° adjustable |
| Control Mode | Hand controller + foot pedal dual control |
| Worktable Diameter | 200mm |
| Power Supply | 220V Single Phase |
| Protection Class | IP50 |
| Optional Accessories | Self-centering chuck, tailstock, welding grounding cable |
Technical Features
- Variable speed motor for smooth rotary motion
- Hand & foot dual control for convenient operation
- Tilting function to achieve down-hand welding
- Compact structure, easy transportation
- Simple wiring and easy maintenance
Quality Control
- Load running test before shipment
- Rotation speed and tilting function inspection
- Full function testing of hand controller and foot pedal
- Surface painting inspection
- Test record available upon request
Packing & Shipping
- Export plywood case packaging
- Internal foam filling for shock protection
- All cables and accessories packed separately
- Lead time: 7-15 working days after deposit
Warranty & After-Sales Service
- 12-month warranty for main unit, wearing parts excluded
- Free online technical support and troubleshooting
- Long-term spare parts supply at factory price
- Operation video and manual provided
