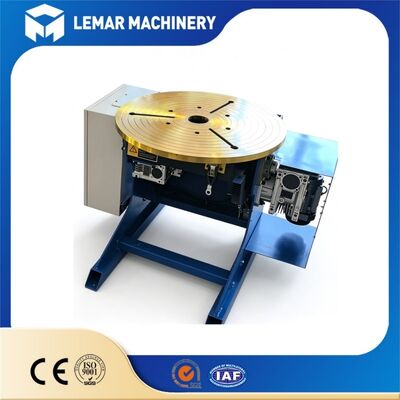

0-90° Tilting 600kg Welding Positioner, Stepless Speed Rotary Welding Table
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 65.00cm * 56.00cm * 64.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
0-90° tilting welding positioner
,600kg stepless speed rotary table
,welding fixture table with tilting
Lemar Machinery 600kg welding positioner is heavy-duty workpiece rotating equipment for metal fabrication workshops. It clamps and tilts cylindrical or irregular workpieces, rotating parts to an ideal flat welding position. This equipment greatly reduces welder fatigue, improves welding seam consistency and workshop productivity. The welding turntable is widely matched with automatic welding systems for circumferential weld jobs.
| Item | Parameter |
|---|---|
| Model | WP-600 |
| Rated Load | 600kg |
| Table Diameter | 800mm |
| Rotation Speed | 0.1~1.0 rpm, stepless adjustable |
| Tilting Range | 0°~90° electric tilting |
| Rotation Motor | 0.37kW |
| Tilting Motor | 0.55kW |
| Control Method | Remote control box + optional foot pedal |
| Power Supply | 380V/220V 50/60Hz customizable |
| Application | Pipe, tank, pressure vessel, cylinder workpiece welding |
- Heavy-duty welded steel frame, solid structure, strong shock resistance and long service life
- Frequency converter stepless speed regulation, turntable rotates smoothly without jitter
- Electric tilting 0-90°, lock at any angle, convenient to adjust workpiece welding posture
- Independent control box, optional foot pedal, realize hands-free operation during welding
- Large T-slot worktable, easy to install chucks and fixtures for different workpieces
- Can connect with MIG, TIG, SAW automatic welding machines for automatic circumferential welding
- Fix the workpiece on the T-slot rotary table by fixture or chuck
- Tilting mechanism drives the table to adjust the workpiece angle to horizontal flat welding position
- Frequency conversion motor drives rotary table to rotate at preset stable low speed
- Operator can adjust rotation speed remotely according to welding process requirement
- With braking system, the turntable stops quickly and keeps stable position after shutdown
- Suitable for circumferential welding of pipes, storage tanks, pressure vessels and cylindrical parts
- Widely used in metal fabrication, boiler manufacturing, machinery parts processing workshop
- Perfectly compatible with MIG, TIG, SAW automatic welding systems
- Ideal for small & medium batch production of cylindrical metal workpieces
- Reduce manual workpiece handling, improve welding uniformity and workshop safety
The rated load is 600kg. Please keep the workpiece gravity close to the table center to ensure safe operation.
Yes, we support 220V / 380V, 50Hz or 60Hz as your local requirement.
Foot pedal is optional. You can select it when placing order.
Yes, our welding positioner can sync with MIG, TIG and SAW welding systems for automatic circumferential welding.
12 months warranty from delivery date. We provide lifelong technical consultation.
