D16 Modular Welding Table For Steel Structure Assembly Tasks
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D16 modular welding table
,welding table for steel assembly
,3D welding table with warranty

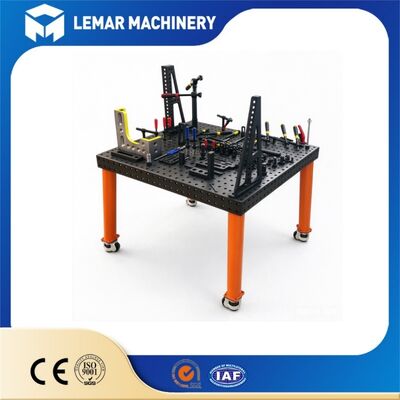

The D16 modular welding table is a flexible reconfigurable workstation built for steel structure assembly tasks. Featuring standardized D16 perforated grids, individual modules can be connected together to expand working area according to component size. The precision milled steel surface acts as a reliable reference plane for aligning light and medium steel profiles. Fabricators can reposition stops and clamps freely to speed up tack welding and frame fitting. The modular concept simplifies handling, allowing users to separate or combine units to match changing steel fabrication workflows.
| Parameter | Specification |
|---|---|
| Model | D16 Modular Welding Table |
| Tabletop Material | Q355 Steel / HT300 Cast iron |
| Surface Treatment | Nitrided (Optional) |
| Hole Diameter | D16 (16mm) |
| Hole Grid Spacing | 50mm × 50mm (Standard) |
| Table Flatness Tolerance | ±0.1mm / m² |
| Standard Table Sizes | 1500×1000mm, 2000×1000mm, 2400×1200mm, 3000×1500mm (Custom sizes available) |
| Tabletop Height | The casting is 150mm in size, and the steel part is 100mm. |
| Load Capacity | Up to 5,000 kg (depending on model) |
| Working Height | 800mm-900mm (adjustable legs optional) |
| Surface Hardness After Nitriding | HV 600-800 |
| Compatible Accessories | Quick locking pins, clamping bolts, stop blocks, angle plates, V-blocks, clamping jaws |
| MOQ | 1 Set |
| Packaging | Plywood Case / Wooden Crate |
| Delivery Time | 15-25 Working Days |
- Bolted modular design allows easy combination or separation for varying steel frame sizes.
- Uniform D16 hole grid delivers countless anchor points for positioning steel profiles and brackets.
- Nitrided tabletop repels weld spatter and resists scratches during continuous assembly work.
- Precision machined flat surface keeps tight tolerances when assembling steel structural parts.
- Compact module weight supports manual movement and rearrangement inside the workshop.
- Interlocking structure maintains surface continuity after multiple modules are spliced together.
This D16 modular welding table is ideal for steel structure assembly tasks. It is suitable for light steel frame prefabrication, handrail assembly, fence frame welding, small equipment stand fabrication, architectural metal component fitting and pre assembly of secondary steel structures.
Send over your steel structure component sizes and workshop layout plans. Our technical team will recommend suitable module combinations and provide a competitive quotation for your assembly tasks. We aim to deliver flexible modular welding workstations to streamline your steel fabrication production.
