5 Ton Welding Rotator Manual Roller Spacing Adjustment
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 74.00cm * 100.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
KTG-5
Document
Model:
KTG-5
Loading Weight:
5000kg
Welding Material:
Mild Steel
Other Name:
MIG Welding Rotator Machine
Application:
Wind Tower Fabrication
Components:
PLC/Motor/Gearbox
Welding Speed:
6-60m/H
Motor Power:
0.37kw
Quantity Roller:
4
Suitable For Vessel:
250-2300mm
Highlight:
5 ton welding rotator manual roller
,welding rotator spacing adjustment
,manual roller welding rotator
Product Description

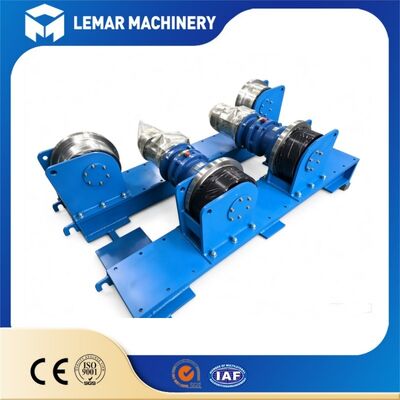

5 Ton Welding Rotator Manual Roller Spacing Adjustment
Product Overview
The 5 Ton Adjustable Welding Rotator features manual roller spacing adjustment, designed for circumferential welding of medium-sized cylindrical workpieces including tanks, pipes, and pressure vessels. Operators can manually adjust the center distance between rollers to accommodate different workpiece diameters. With variable frequency speed regulation and a solid steel frame, this equipment delivers stable rotation performance for workshop welding tasks. This cost-effective welding auxiliary equipment is widely adopted in small and medium fabrication workshops.
Machine Maintenance Tips
- Perform regular lubrication on screw adjustment mechanism to maintain smooth manual spacing adjustment
- Inspect rollers for wear regularly and replace worn rollers to protect workpiece surface
- Check fasteners and bolts before each operation and retighten loose connections
- Keep electrical control box dry and dust-free to extend service life of electrical components
- Do not overload the machine beyond 5 ton rated capacity to prevent frame deformation
- Clean debris from rollers after daily work to prevent slipping during rotation
Technical Specifications
| Item | Specification |
|---|---|
| Model | ZT-5 |
| Rated Load | 5000kg |
| Adjusting Type | Manual adjustable roller spacing |
| Workpiece Diameter | Φ250-2500mm |
| Roller Material | PU / Steel Optional |
| Rotation Speed | 6-60 m/h, VFD stepless speed |
| Motor Power | 0.37kW |
| Frame Material | Thickened Welded Steel |
| Control Mode | Wired Remote Control Box |
| Certificate | CE, ISO9001 |
| Voltage | 380V / Customizable |
| Warranty | 12 Months |
| Brand | Lemar |
| Origin | Wuxi, China |
Key Features
- Rated load up to 5 tons, cost-effective solution for medium workpieces
- Manual adjustable roller center distance, flexible to match various cylinder sizes
- PU roller optional, prevents scratches on stainless steel workpiece surface
- VFD stepless speed regulation, smooth rotation with low noise
- Compact overall structure, occupies less workshop floor space
- Simple operation & easy daily maintenance
- Complete CE & ISO certification, meets international safety standards
- Customizable: roller material, power supply, control box and mounting base
Application Scenarios
- Circumferential seam welding of small and medium storage tanks
- Pipe spool fabrication and circular welding for pipeline projects
- Shell welding of small heat exchangers and filter vessels
- Cylindrical parts welding for machinery and steel structure workshops
- Surface polishing, assembly and inspection of cylindrical workpieces
- Small boiler cylinder manufacturing and welding work
Technical Support
Pre-sale: Calculate suitable roller spacing according to your workpiece dimensions
In-sale: Support video factory inspection before shipment
After-sale: Online video installation & operation guidance
Warranty: 12-month warranty period for main parts
Spare Parts: Affordable spare parts supply for long-term usage
Frequently Asked Questions
Q1: What is the difference between adjustable type and self-aligning rotator?
A1: This adjustable model requires manual adjustment of roller distance; self-aligning type automatically centers the workpiece.
Q2: What is the workpiece diameter range for 5 ton adjustable rotator?
A2: Standard Φ250-2500mm, we can modify range on request.
Q3: Can I choose PU rollers for stainless steel tank welding?
A3: Yes, PU rollers are recommended to protect workpiece surface from scratches.
Q4: Can the machine work with welding manipulator together?
A4: Yes, it can coordinate with welding manipulator for automatic welding line.
Q5: What voltage options are available?
A5: Standard 380V, customized voltage for different countries supported.
Q6: What's your warranty term?
A6: 12 months warranty for main components, lifelong online technical support.
