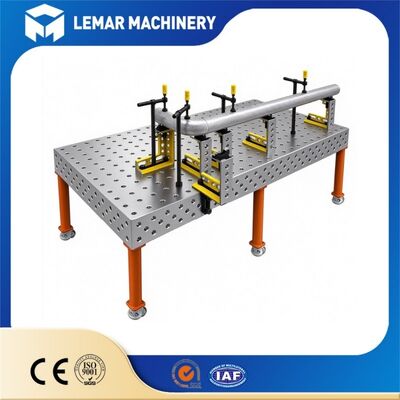

Durable D28 Welding Table in Shipbuilding Fabrication Work
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table for shipbuilding
,Durable 3D welding table
,Fabrication work welding table
Our Durable D28 Welding Table is engineered to withstand the rigorous conditions of shipbuilding fabrication work. Constructed from thick Q355 steel plate with nitriding treatment, this 3D flexible platform features a universal D28 hole grid for flexible fixture arrangement. It can sustain heavy marine workpieces and resist corrosion from workshop fumes and welding splashes. This welding table delivers stable benchmark positioning for hull segments and marine structural parts, reducing repeated calibration work and improving fabrication consistency in shipyards.
| Grid System | D28 - 28mm holes on 100mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 gray cast iron / Q355 steel |
| Tabletop Thickness | 100mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500mm |
| Leg Height | 850mm (custom heights available) |
| Leg Construction | 80×80mm square tube, 5mm wall |
| Leveling Feet | M24 threaded, 50mm pad |
| System | Material | Size (mm) | Weight (kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron/Q355 steel | 1000×1000×200/150 | 300 |
| D28/D16 | HT300 cast iron/Q355 steel | 1000×2000×200/150 | 520 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200×1200×200/150 | 400 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200×2400×200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500×1000×200/150 | 420 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500×1500×200/150 | 600 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500×2000×200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500×3000×200/150 | 1150 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000×3000×200/150 | 1500 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000×4000×200/150 | 2100 |
- Robust thick plate structure handles oversized marine workpieces and avoids deflection under long-term heavy load
- Nitrided working surface provides solid protection against welding spatter, abrasion, and shipyard workshop contaminants
- Universal D28 hole pattern supports fast assembly of clamps and locators for varied hull structural components
- Precision milled tabletop retains stable reference plane to guarantee accurate assembly for ship parts
- Modular layout enables quick reconfiguration to adapt to different shipbuilding fabrication tasks
- Matches full range of D28 standard accessories to build complete fixture sets without custom modification
This durable D28 welding table is optimized for shipbuilding fabrication work such as hull sub-assembly and marine bracket welding. It also applies to offshore equipment manufacturing, port metal structure processing, heavy mechanical assembly, steel bridge fabrication, and large pressure vessel component welding.
If you seek durable welding platform solutions for shipbuilding fabrication or other heavy metal structure projects, kindly share your workpiece specifications and project requirements. Our engineering team will design proper fixture plans and provide competitive quotation for your production.
