Heavy Duty 40ton Self-aligning Welding Turning Rolls for LNG Cryogenic Tank
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 250.00cm * 150.00cm * 130.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
40ton self-aligning welding rolls
,heavy duty LNG tank welding rolls
,cryogenic tank welding turning rolls

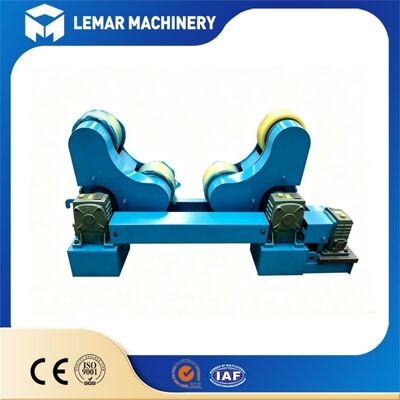

HGZ-40 self-aligning welding turning rolls consist of one active frame and one idler frame. The system automatically adjusts roller angle to fit different cylinder diameters without manual adjustment. Designed for circumferential and longitudinal welding of pressure vessels, cryogenic tanks, LNG tanks, boilers, and large steel cylinders.
Lemar is a professional welding equipment manufacturer from Wuxi, China. Our rotators are CE certified, feature stable running performance, and are widely exported to Russia, Kazakhstan, Pakistan, Australia, and the Middle East. Customized services are available.
- Self-aligning design: rollers automatically adjust angle, saving time for workpiece changes
- PU steel-core rollers: high load capacity, wear-resistant, no scratching on tank surfaces
- VFD stepless speed regulation: smooth rotation and stable operation under heavy loads
- Handheld remote control + local control box for easy operation
- Reserved interface for linkage with welding manipulator to build automatic welding stations
- Overload and over-current protection; solid box-type base for heavy workshop conditions
- Full set of certificates, formal export packing, and 12 months warranty
| Item | Specification |
|---|---|
| Model | HGZ-40 |
| Rated Loading | 40 Ton |
| Applicable Workpiece Diameter | Φ600-4200 mm |
| Roller Size | Φ400×180 mm PU roller |
| Linear Speed | 100-1000 mm/min, stepless VFD control |
| Driving Motor | 2×1.5 kW |
| Power Supply | 380V/50Hz, 3Ph |
| Control | Handheld remote + local control cabinet |
| Configuration | 1 active set + 1 idler set |
| Optional Upgrade | Anti-drift device, PLC control, foot switch, steel roller |
- Pressure Vessel / Boiler Manufacturing
- LNG & Cryogenic Storage Tank Fabrication
- Oil & Gas Storage Tanks
- Steel Pipe, Column, Silo Welding & Assembly
- Wind tower, large cylinder surfacing repair
- Production lead time: 15-25 working days after receiving deposit
- Machine main frame is packed by plastic film; spare parts & electric components are packed in export plywood case
- We can arrange sea freight, railway or truck transportation as per your requirements
- Full loading list and pre-shipment inspection report provided before shipment
Wuxi Lemar Machinery is a professional manufacturer of welding automation equipment. Main products include welding turning rolls, positioners, welding manipulators, and cutting machines. We specialize in heavy-duty welding auxiliary machines for tank and pressure vessel factories. With rich export experience for Russia, Kazakhstan, and Middle East markets, we provide transparent quotations without hidden charges.
