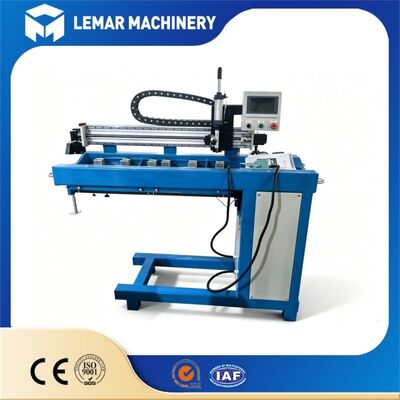

Automatic 1000mm Longitudinal Seam Welder, Tank & Pipe Straight Seam Welding Equipment
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 74.00cm * 100.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
ZTH-1000
Document
Model NO.:
ZTH-1000
Min. Workpiece Inner Diameter:
≥ φ100 Mm
Minimum Workpiece Diameter:
85 Mm
Welding Method:
TIG / Plasma / MIG Optional
Drive Type:
Servo Motor Drive
Machine Structure:
Cantilever Integral Structure
Automation Grade:
Fully Automatic
Working Air Pressure:
0.5-0.8 MPa
Welding Speed:
300-2000 Mm/Min
Highlight:
1000mm automatic longitudinal seam welder
,tank straight seam welding equipment
,pipe seam welder with warranty
Product Description
Automatic 1000mm Longitudinal Seam Welder, Tank & Pipe Straight Seam Welding Equipment
Product Overview
ZF-1000 automatic longitudinal seam welding machine is specially designed for straight seam butt welding of cylinders, barrels and metal sheets. It adopts pneumatic clamping and servo drive system, ensuring consistent welding speed and uniform weld bead. Suitable for stainless steel, carbon steel, aluminum alloy, and widely used in water tanks, pressure vessels, exhaust pipes and metal containers.
Main Features
- PLC touch screen control, stores multiple welding programs, easy operation
- Servo motor and linear guide rail, stable running and high welding precision
- Pneumatic copper pressing mechanism, tight clamping, less welding deformation
- Support TIG, MIG, plasma welding source optional
- Adjustable welding speed, torch fine-tuning in X/Y axis
- Compact structure, low maintenance, stable for mass production
Applications
- Stainless steel water tank, pressure vessel, barrel
- Pipe & cylinder shell, muffler, exhaust tube
- Metal container, sheet metal cylinder fabrication
- HVAC, food equipment, pharmaceutical tank manufacturing
Technical Data
| Item | Parameter |
|---|---|
| Model | ZF-1000 |
| Max Welding Length | 1000 mm |
| Workpiece Diameter | 100 ~ 1000 mm |
| Plate Thickness | 0.5 ~ 4 mm |
| Welding Type | TIG/MIG/Plasma |
| Control | PLC + Touch Screen |
| Drive | Servo Motor |
| Power | 380V 3Phase |
Package & Shipping
Machine packed with plywood case, suitable for sea & air shipment. We can arrange loading, inspection and shipping documents. Before delivery, every machine will pass full factory test and video inspection.
Our Advantages
- Professional factory direct sales, independent R&D and production, stable machine quality and competitive price
- High-precision servo walking system, uniform welding speed, smooth and beautiful welding seam without welding leakage
- Universal for multiple welding processes, compatible with TIG, MIG and plasma welding sources
- Low failure rate, easy maintenance, suitable for long-term continuous industrial production
- Complete export documents, support CE certification and customized parameters for overseas markets
- Mature after-sales system, 12-month warranty and lifelong free technical guidance
Frequently Asked Questions
Q1: What materials can this 1000mm longitudinal seam welder weld?
A1: Stainless steel, carbon steel, aluminum alloy.
Q2: Can we change welding source TIG to MIG?
A2: Yes, welding power source can be selected as your requirement.
Q3: What is the maximum workpiece diameter?
A3: Standard model supports 100-1000mm, we can customize larger diameter.
Q4: Is it possible to customize longer welding length?
A4: Yes, we have 1500mm, 2000mm models for option.
Q5: What is the warranty period?
A5: 12 months warranty for whole machine, lifetime technical support.
Q6: Do you provide installation and operation training?
A6: We send operation manual and operation video, online remote training available.
