BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 32.00cm * 27.00cm * 23.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-1
Document
Model NO.:
BWJ-1
Max Eccentricity Distance:
150mm
Rated Loadight:
10kg (Horizontal)
Table Diameter:
180mm
Motor Power:
0.18kw
Operation Control:
Foot Pedal + Manual Control
Exported To:
USA, UK, Canada, Greece, Poland, Brazil
Pedal Switch:
Yes
Postioner Type:
Seat Type
Highlight:
10kg welding positioner with foot pedal
,welding positioner with 3-jaw chuck
,welding fixture table with foot control
Product Description

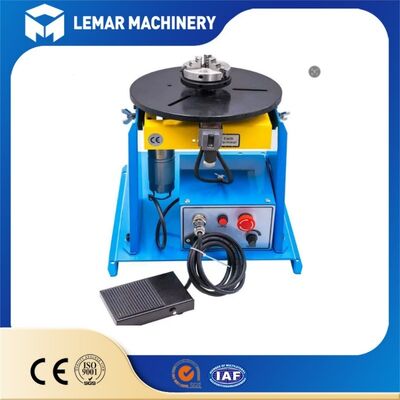

BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
Our 10kg welding positioner is a lightweight rotary welding turntable specially designed for small cylindrical and flange workpieces. The worktable can tilt from 0° to 90° with worm gear self-locking structure, locking workpiece angle firmly during welding.
It adopts stepless speed regulation for stable rotation, matching TIG, MIG and argon arc welding. Standard fitted with 3-jaw chuck for reliable clamping. Foot pedal control frees operator's hands, greatly improving welding efficiency and seam quality.
Core Advantages
- 0-90° tilting table with worm gear self-lock, fix workpiece angle steadily
- Stepless rotation speed control, provides smooth and uniform rotary motion
- Foot pedal operation, hands-free control for convenient welding work
- Compact mini frame, small footprint for limited workshop space
- Anti-interference design, compatible with TIG / MIG precision welding
Technical Specifications
| Item | Specification |
|---|---|
| Model | BY-10 |
| Rated Horizontal Load | 10kg |
| Rated Vertical Load (90°) | 5kg |
| Table Diameter | 180mm |
| Tilting Angle | 0~90° |
| Rotation Speed | 2~20r/min stepless adjustable |
| Standard Chuck | K65 3-jaw chuck |
| Power Supply | AC 110V/220V, 50/60Hz |
| Control Mode | Foot pedal + control box |
| Certification | CE |
| Warranty | 1 Year |
Applications
- Small pipe circumferential welding
- Flange and fitting welding
- Round workpiece precision welding
- Small cylinder seam welding
- Metal prototype fabrication
- Workshop batch small parts welding
- Welding test & sample processing
Package & Shipment
- Package: Plywood case, moisture-proof and shockproof for sea or air transport
- Loading Port: Shanghai / Ningbo / Qingdao
- Delivery Time: 7-15 working days after receiving deposit
- Shipping Method: Sea freight, air freight or express available
After-sales Service
- 12-month warranty for the whole machine, excluding wearing parts
- Free technical consultation and remote operation guidance
- Spare parts support with competitive price after warranty period
- Quick response within 24 hours for technical problems
Frequently Asked Questions
What is the max load capacity of this positioner?
Horizontal load 10kg; when table tilts to 90°, max vertical load is 5kg.
Can the table tilt to 90 degrees?
Yes, 0-90° adjustable tilting with worm gear self-locking to keep angle stable.
What chuck comes as standard?
Standard K65 three-jaw chuck, K80 chuck optional.
What welding types can it support?
Suitable for TIG, MIG, argon arc welding for small pipe and flange workpieces.
Is foot pedal included?
Yes, foot switch is included for hands-free rotation control.
