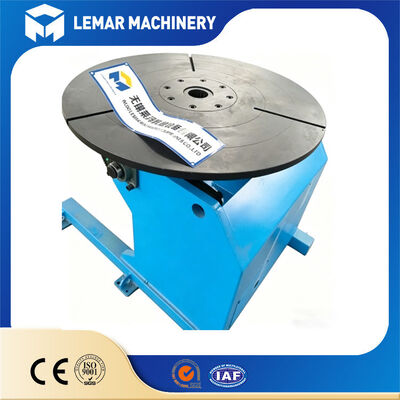

600kg Welding Positioner Tilt Rotary Table for Pressure Vessel Circular Weld
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 75.00cm * 60.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
600kg welding positioner for pressure vessels
,tilt rotary table for circular weld
,heavy-duty rotary welding positioner
The 600kg welding positioner is a widely used automatic welding auxiliary equipment designed for rotating workpieces. It enables adjustable-speed rotation of cylindrical, circular, and irregular workpieces, maintaining the welding seam at the optimal flat welding position. This significantly reduces welding difficulty, improves weld quality, and decreases labor intensity.
Ideal for carbon steel, stainless steel, and alloy workpiece welding in pressure vessels, pipe fittings, tanks, and engineering machinery industries. The positioner features a heavy-duty base, reliable chuck clamping, and stable AC/DC variable speed rotation. It coordinates with welding manipulators, welding torch oscillators, and automatic welding machines, supporting TIG, MIG/MAG, and submerged arc welding processes.
| Item | Specification |
|---|---|
| Model | Welding Positioner 600kg |
| Rated Load Capacity | 600kg |
| Table Rotation Speed | Stepless adjustable |
| Tilt Angle | 0~90° |
| Worktable Diameter | Customizable |
| Rotation Motor | Variable speed motor |
| Control Mode | Remote hand pendant control |
| Clamping Device | 3-jaw self-centering chuck |
| Power Supply | 380V 50Hz 3-phase |
| Application | Circular seam welding for tank, flange, cylinder |
| Optional Parts | Custom fixture, foot switch, anti-splash cover |
| Warranty | 1 year for core components |
Rated loading capacity up to 600kg, suitable for medium-sized tanks, pipe flanges, valve housings, and cylindrical workpieces. Robust structure ensures stable rotation without shaking under full load conditions.
Rotating speed continuously adjustable. Low speed runs smoothly for precision welding; high speed boosts loading/unloading efficiency. Digital speed display for direct reading and quick parameter setting.
Worktable rotates horizontally and tilts within designed angle range. Adjust workpiece posture freely to transfer welding seam into flat welding position, avoiding overhead welding and vertical welding defects.
Thick steel plate welded base with stress relief treatment. Anti-vibration design, long service life and low maintenance cost for continuous workshop operation.
Equipped with three-jaw self-centering chuck. Stable clamping, easy to load and unload workpieces. Custom chuck size and fixture available for special-shaped parts.
Independent remote control box, convenient one-hand operation. Start, stop, speed adjustment and tilt control can be operated away from the welding zone. With emergency stop protection for safe production.
Can coordinate with longitudinal seam welder, welding column & boom, automatic welding power source. Supports circular seam welding for tanks, pipes and rotary parts.
- Heavy welded base frame
- Rotation driving unit
- Tilt mechanism
- Worktable & 3-jaw self-centering chuck
- Electric control cabinet
- Remote hand control pendant
- Safety emergency stop system
- Pressure vessel industry: small tanks, air receivers, vessel heads
- Pipe fitting industry: pipe flanges, pipe spools, pipe nozzles
- Machinery manufacturing: gear housings, rotary metal parts
- Fire protection industry: fire extinguisher shells
- Petrochemical industry: small alloy vessels and connectors
600kg heavy duty welding positioner with tilt and rotary function, stepless speed regulation and remote pendant control. It keeps circular welds in flat position, improves welding quality and productivity. Suitable for medium tank, flange and cylinder circular seam welding. Compatible with most automatic welding systems. Custom fixtures available, 1-year warranty.
