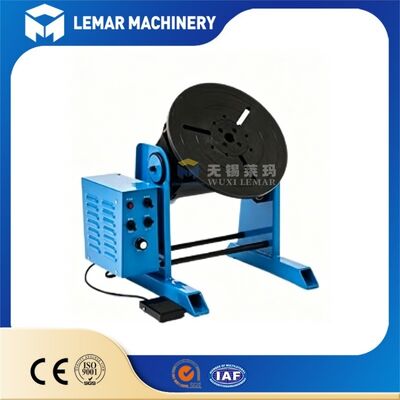

200kg Benchtop Welding Positioner, Welding Turntable with Clamp Chuck for Pipe Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 65.00cm * 56.00cm * 64.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
200kg benchtop welding positioner
,welding turntable with clamp chuck
,pipe welding rotary positioner
This compact 200kg welding positioner is designed as benchtop rotary tilting equipment for small workpieces. It rotates and tilts workpieces to maintain welding seams in flat down welding position, significantly improving welding quality and working efficiency. Equipped with a 3-jaw self-centering chuck and foot pedal control for easy single operator use. Ideal for small workshops, pipe fitting, and flange welding applications. CE certification available.
- Rated load capacity of 200kg with compact, portable structure for easy movement and installation
- 0~120° tilting range with 360° workpiece rotation for flexible welding angle adjustment
- Stepless adjustable rotation speed with digital display for stable operation
- 3-jaw self-centering chuck for fast clamping of round workpieces
- Foot pedal control frees operator's hands with emergency stop for safety protection
- Low noise operation with minimal space requirements, ideal for small batch workpiece welding
| Item | Specification |
|---|---|
| Rated Load | 200kg |
| Tilting Range | 0~120° |
| Rotation Speed | 0.1~2 rpm, stepless |
| Standard Chuck | 200mm 3-jaw chuck |
| Rotation Motor | Gear motor |
| Power Supply | 220V 1-phase 50Hz (customizable) |
| Control | Foot pedal + control box |
- Flange welding: rotary positioning for various flanges and disk parts
- Small pipe fitting welding: circumferential seam welding of short pipes and pipe connectors
- Small cylinder workpiece welding: thin-wall small tank rotary welding
- General metal fabrication: rotating fixture for small size round parts welding
- Rotary worktable & 3-jaw chuck: clamps workpiece and enables circular rotation
- Tilting mechanism: adjusts workpiece inclination angle for ideal welding position
- Gear reduction drive unit: ensures stable and low-noise rotation
- Control system: foot switch + control box with speed knob and emergency stop
- Base frame: cast steel base for stable support
- Full no-load and rated load running tests conducted before shipment
- Rotation smoothness, tilting function, and emergency stop verification
- Speed accuracy and chuck clamping performance validation
- Test photos and videos provided for customer confirmation before delivery
Rated load is 200kg. Workpiece weight cannot exceed this value for long-term safe operation.
Yes, we can supply optional different size chucks upon request.
Standard power is 220V single phase. Custom voltage available according to local requirements.
0° to 120°, adjustable freely.
Yes, foot pedal is included in standard configuration.
Yes, CE document and Declaration of Conformity can be provided for customs clearance.
