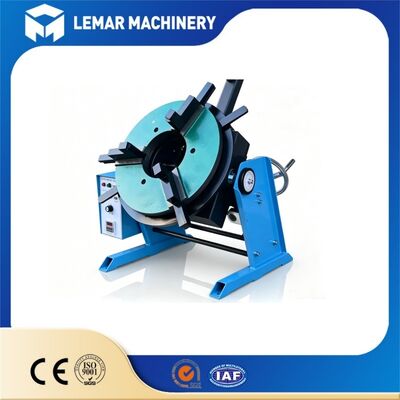

Desktop 50kg Welding Positioner With Optional 3-Jaw Welding Chuck
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 59.00cm * 65.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-5
Document
Model:
50kg Welding Positioner
Rated Load:
50kg
Max Workpiece Diameter:
300mm
Rotation Speed:
0.2–2 Rpm (stepless Adjustable)
Tilting Angle:
0–90°
Tilting Mode:
Electric Tilting
Rotation Motor Power:
0.18kw
Tilting Motor Power:
0.25kw
Control System:
VFD Frequency Control
Highlight:
50kg welding positioner with chuck
,desktop welding positioner fixture
,3-jaw welding chuck positioner
Product Description
Desktop 50kg Welding Positioner With Optional 3-Jaw Welding Chuck
Product Overview
This 50kg bench welding positioner is compact table-type welding auxiliary equipment, specially designed for small circular workpieces. It enables rotary positioning and tilting functions, helping to complete circumferential welding efficiently. Widely used in small workshops and batch production environments.
Core Advantages
- Maximum load capacity of 50kg with compact desktop structure for easy installation and mobility
- Variable frequency speed regulation for smooth, adjustable rotation speed
- 0~90° hydraulic or electric tilting angle options available
- Equipped with hand remote controller and foot pedal for simple operation
- Stable running performance with low vibration for uniform welding seams
Technical Parameters
| Item | Specification |
|---|---|
| Rated Load | 50kg |
| Rotation Speed | Adjustable |
| Tilting Angle | 0-90° |
| Control Mode | VFD control + hand remote + foot switch |
| Application | Small cylinder, pipe, flange circular welding |
| Optional Accessory | 3-jaw chuck |
Application Scenarios
- Small pipe and flange circumferential welding
- Small cylindrical workpiece welding
- Stainless steel small vessel fabrication
- Hardware circular seam welding
- Small workshop batch welding processing
Standard Configuration
- Main positioner body
- VFD control cabinet
- Hand-held remote controller
- Foot pedal switch
- Full set installation fasteners
- English operation manual
Working Principle
This bench welding positioner utilizes a VFD driving system. The turntable rotates at adjustable constant speed to turn workpieces. With tilting functionality, it can adjust workpiece angles, allowing welders to achieve optimal welding positions, reducing welding difficulty and improving weld quality.
Quality Inspection & After-sales Service
- Full inspection before delivery with test running records available
- 12 months warranty for main components
- Permanent online technical consultation
- English operation manual and operation video support
- Spare parts supply with favorable pricing after warranty
- Remote fault guidance
- Customized service for special requirements
Frequently Asked Questions
What material workpieces can it weld?
Suitable for carbon steel, stainless steel, and aluminum small cylindrical parts.
Can we add chuck on this 50kg positioner?
Yes, 3-jaw chuck is optional.
Is the rotation speed adjustable?
Yes, VFD stepless speed regulation.
What voltage can you supply?
Support customized voltage for different countries.
What is the tilting mode?
Electric tilting as standard, hydraulic type optional.
Can you send operation video for reference?
Sure, we can provide working video.
Is CE certificate available?
CE certificate can be provided.
Welcome to send your workpiece size and requirements - we will offer the best solution and quotation for you!
